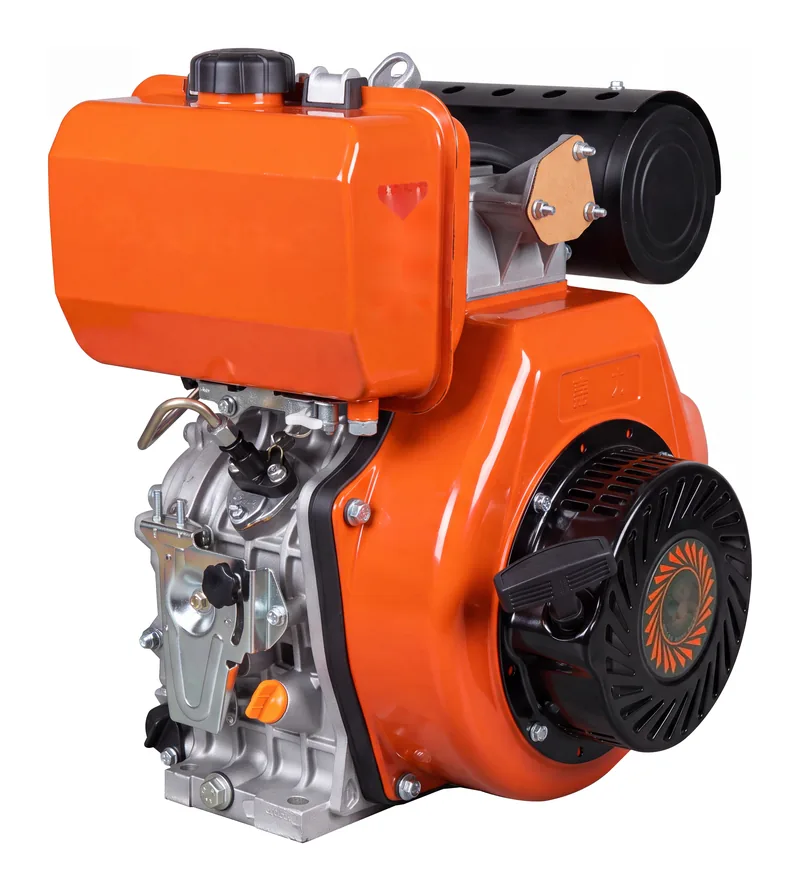

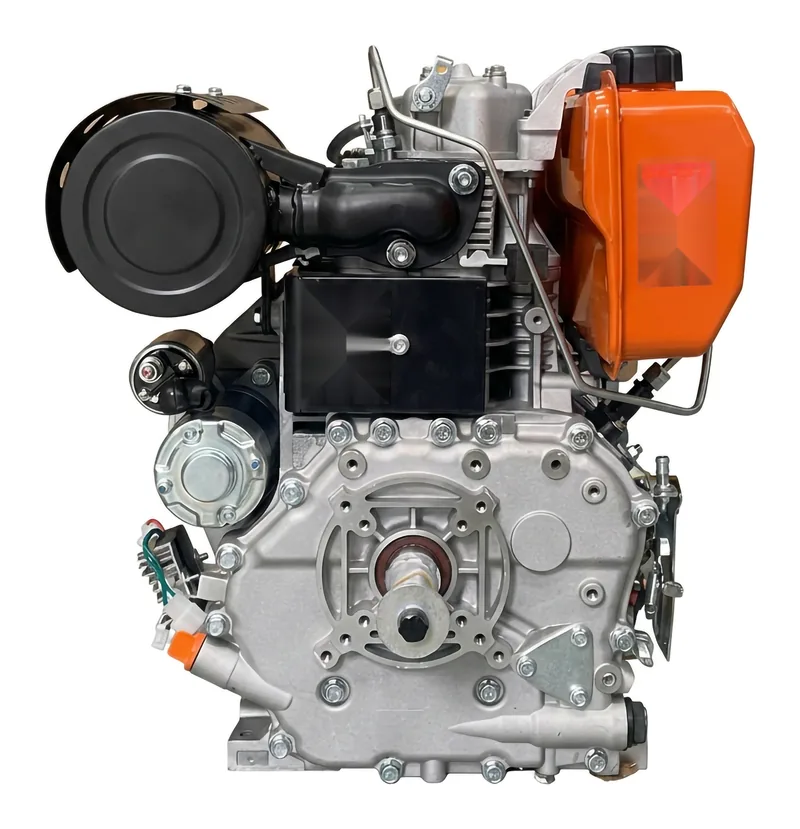

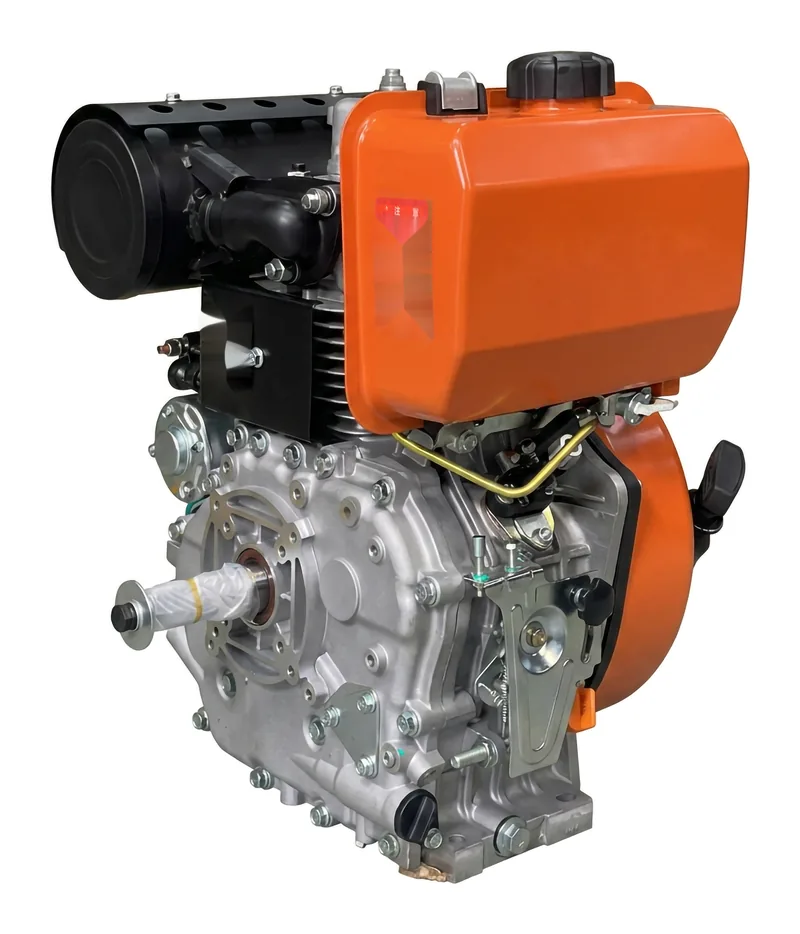

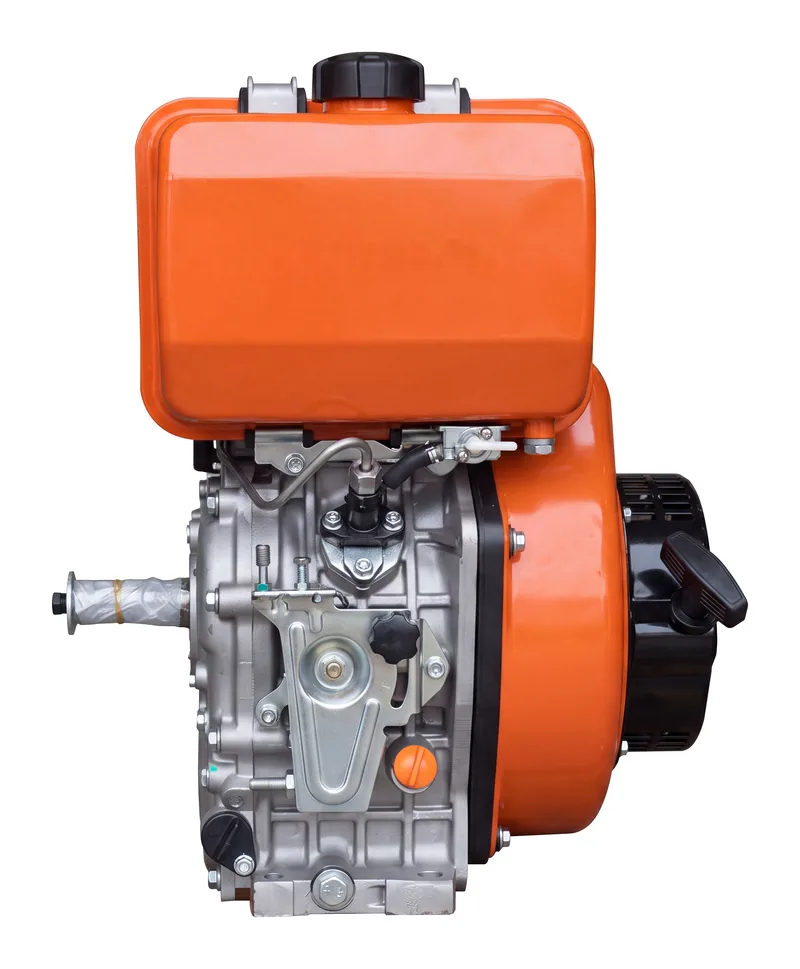

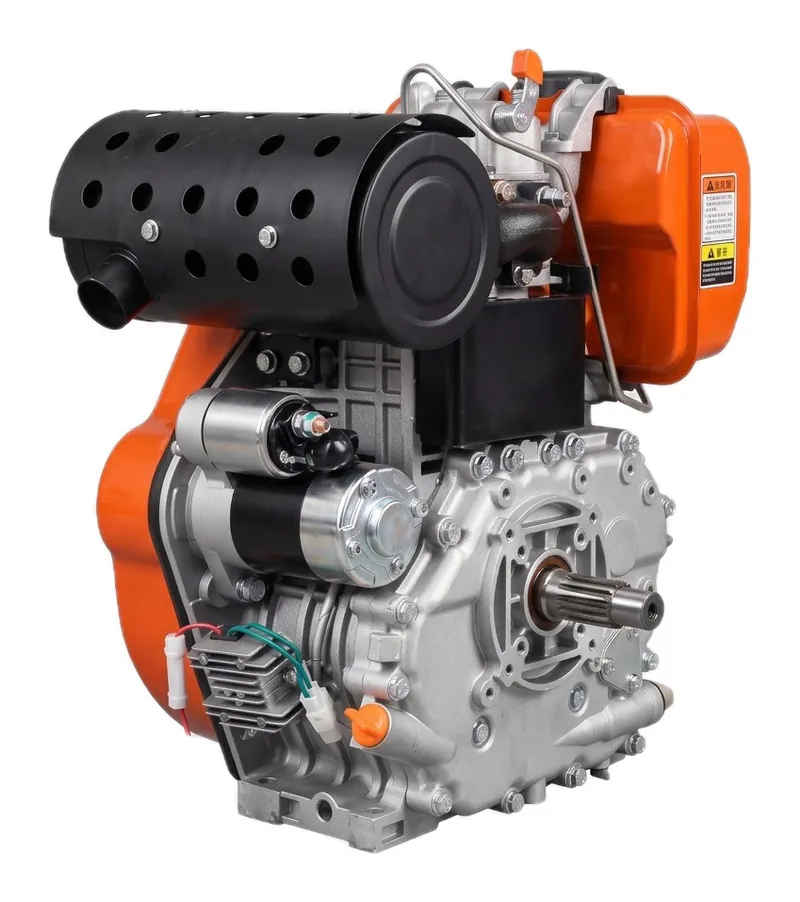

HTX-AE1105 Air-Cooled Diesel Engine
Diesel Engines · Air-Cooled
11.7 kW
HTX-AE1105 is a single-cylinder air-cooled diesel engine: 11.7 kW (15.9 hp) rated at 3000 rpm. 0.762 L displacement, fuel consumption 280 g/kWh, net weight 63 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-AE1105 is a single-cylinder, air-cooled, four-stroke, direct-injection diesel engine rated 11.7kW (15.9hp) at 3000rpm. Bore×stroke 105×88mm, displacement 0.762L, maximum torque 44.3 N.m. Forced air cooling needs no radiator or coolant. Electric start, 2.1L oil capacity, 63kg net. For generator sets, water pumps, construction and farm machinery, worldwide.
Technical Specifications
- Rated power
- 11.7kW15.9hp
- Displacement
- 0.762L
- Net weight
- 63kg
- Rated speed
- 3000 rpm
- Rated power
- 11.7 / 15.9hp kW / hp
- Bore x Stroke
- 105 x 88 mm
- Compression ratio
- 19:1
- Max torque
- 44.3 N.m
- Fuel consumption
- 280 g/kW.h
- Oil capacity
- 2.1 L
- Fuel tank capacity
- 5.5 L
- Start mode
- Electric start
- Overall dimension
- 420*490*570 mm
Key Features
- Single-cylinder air-cooled diesel, 11.7kW at 3000rpm
- Direct injection
- Maximum torque 44.3 N.m
- Forced air cooling, no radiator or coolant
- 12V electric start
Applications
- Generator Set
- Water Pump
- Light Construction
- Agriculture
Ordering & Export
- OEM / ODM
- For distributors: private label & custom configuration
- Volume pricing
- Quoted by order volume · samples on request
- Export packaging
- Confirmed with each order
- Quality inspection
- Pre-shipment & third-party (SGS / BV) welcome
- Engineering support
- Model selection & sizing assistance
- Worldwide export
- Shipped from China, multi-region experience
