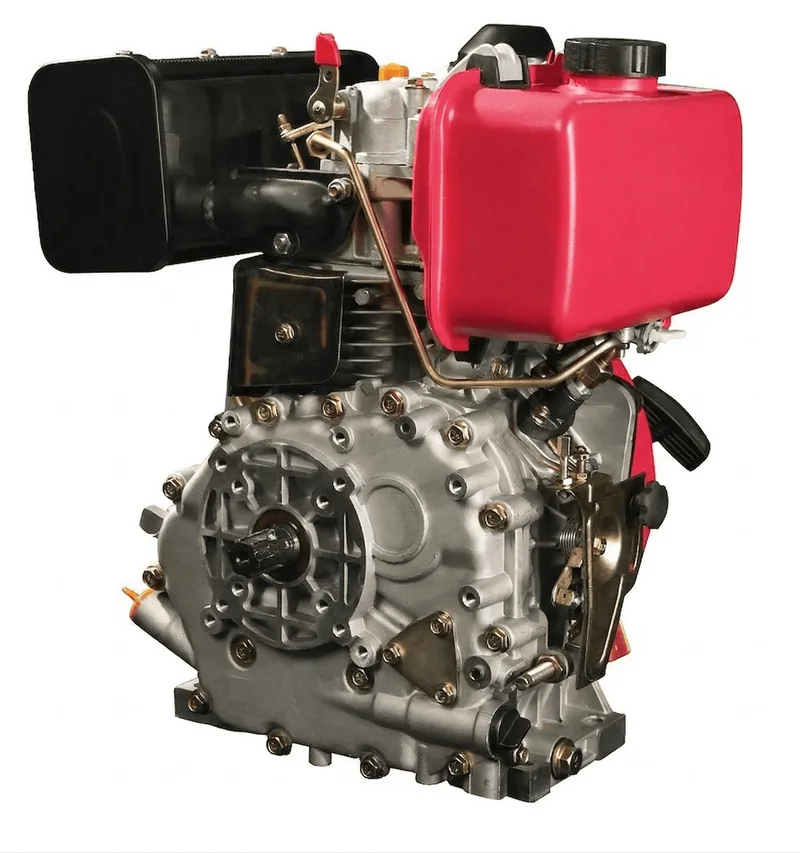

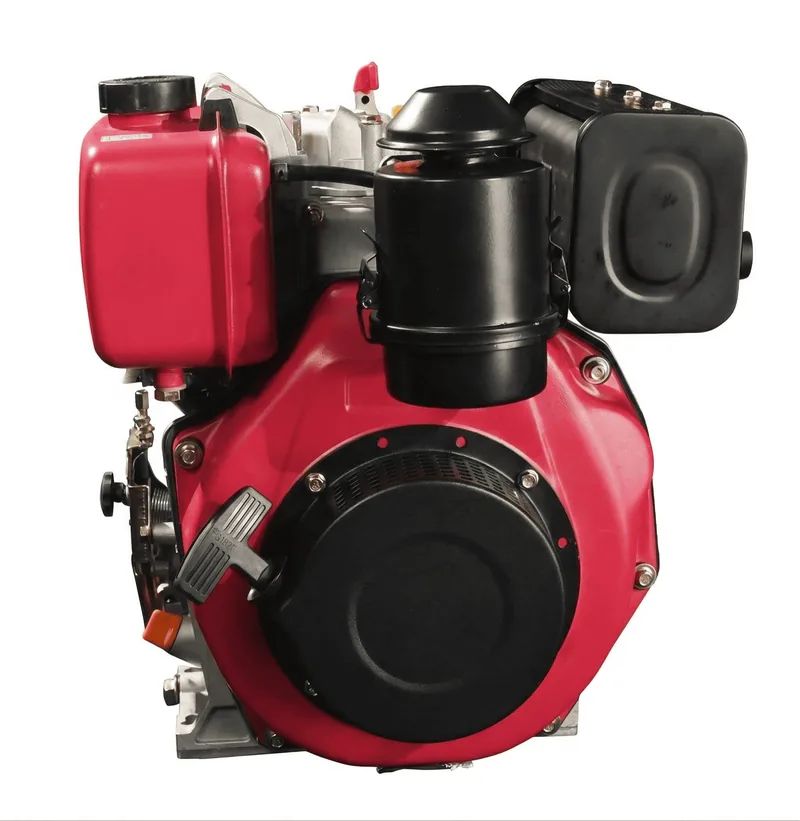

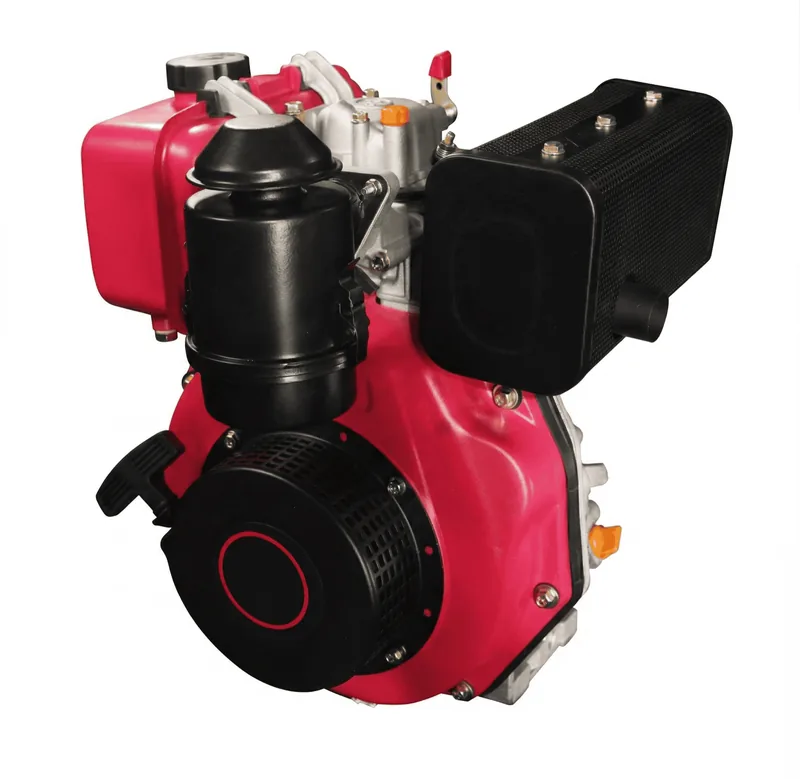

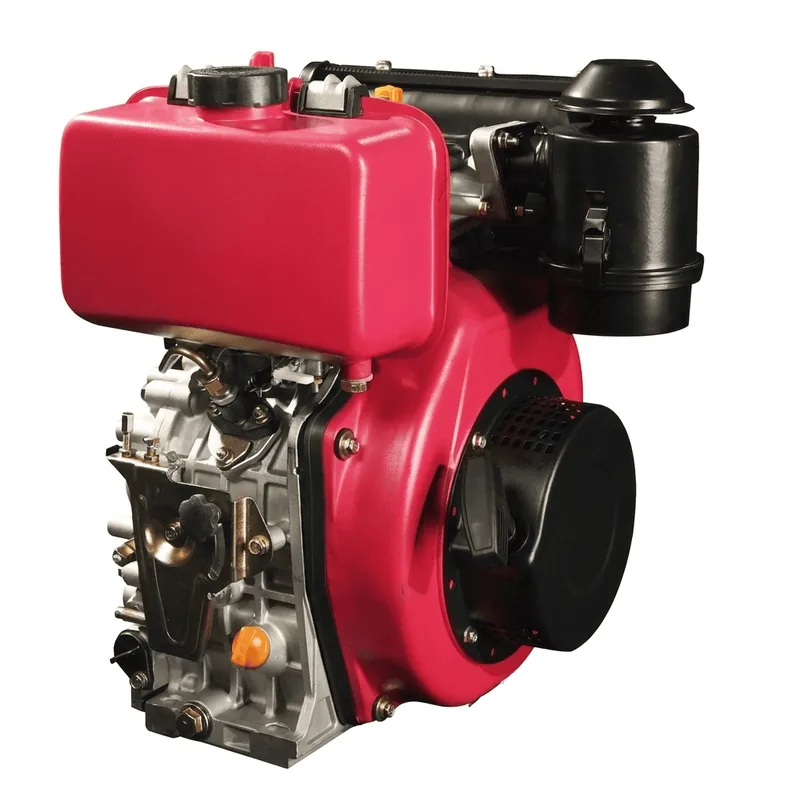

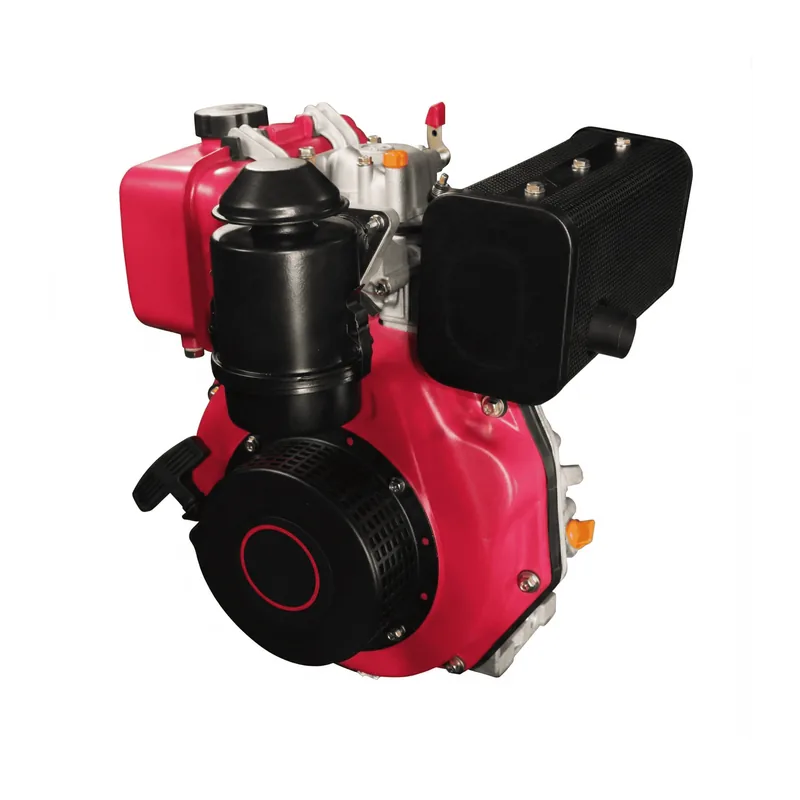

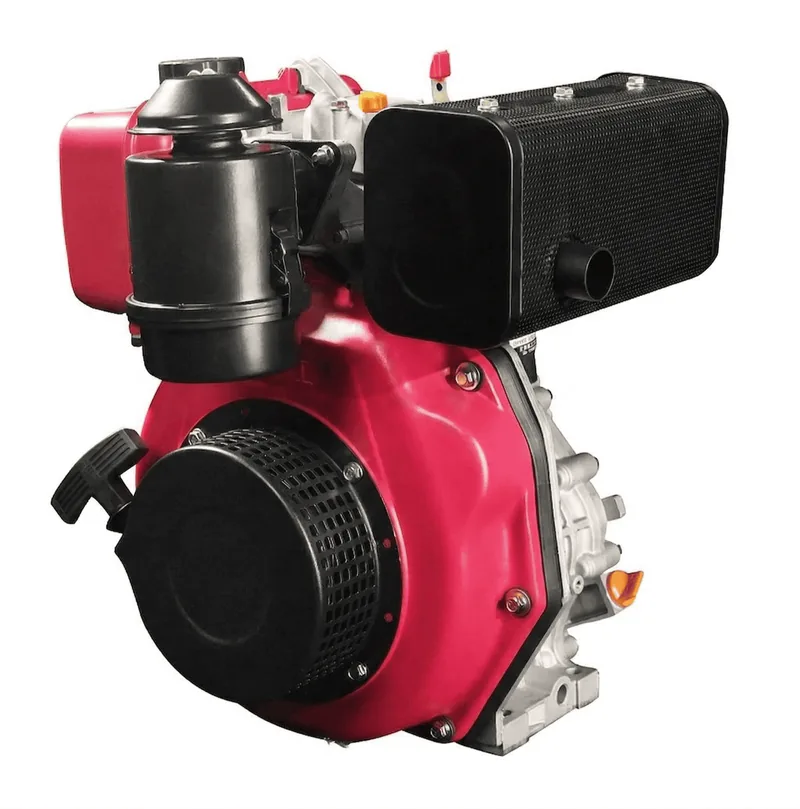

HTX-AE182 Air-Cooled Diesel Engine
Diesel Engines · Air-Cooled
4.5 kW
Air-cooled single-cylinder diesel engine, 4.5kW at 3600rpm. Direct injection, compact vertical design. For pumps, gensets and garden equipment.
The HTX HTX-AE182 is a single-cylinder, air-cooled, four-stroke, vertical direct-injection diesel engine, delivering 4.5kW (6.12hp) at 3600rpm. With a bore of 82mm and stroke of 65mm (displacement of 0.343L), this engine is engineered for reliable performance under demanding conditions. Key advantages include forced air cooling for consistent temperature control, low fuel consumption (280 g/kW.h), and a compact vertical design that simplifies installation. Maximum torque of 13.73 N.m is delivered at 2700rpm. The high compression ratio (19:1) ensures easy starting in cold weather, with recoil rope or electric start available. Ideal for small agricultural machinery, water pumps, generator sets, and garden equipment worldwide.
Technical Specifications
- Rated speed
- 3600 rpm
- Rated power
- 4.5 / 6.12hp kW / hp
- Max power
- 4.95 / 6.73hp kW / hp
- Bore x Stroke
- 82 x 65 mm
- Displacement
- 0.343 L
- Compression ratio
- 19:1
- Max torque
- 13.73 @ 2700rpm N.m
- Fuel consumption
- 280 g/kW.h
- Start mode
- Recoil rope start or electric start
- Net weight
- 35 kg
- Overall dimension
- 385*420*460 mm
Key Features
- Forced air cooling for consistent temperature control without a radiator
- Maximum torque 13.73 N.m at 2700rpm for strong load handling
- Low fuel consumption of 280 g/kW.h at the rated point
- High compression ratio 19:1 for reliable cold starting
- Compact vertical design that simplifies installation
- Recoil rope start or electric start options
Applications
Ordering & Export
Supply & customization
- OEM / ODM
- Private label & custom configuration
- Sample & trial orders
- Welcome — flexible quantities
- Export packaging
- Export-grade, seaworthy cases / pallets
- Quality inspection
- Pre-shipment & third-party (SGS / BV) welcome
- Engineering support
- Model selection & sizing assistance
- Worldwide export
- Multi-region shipping experience
