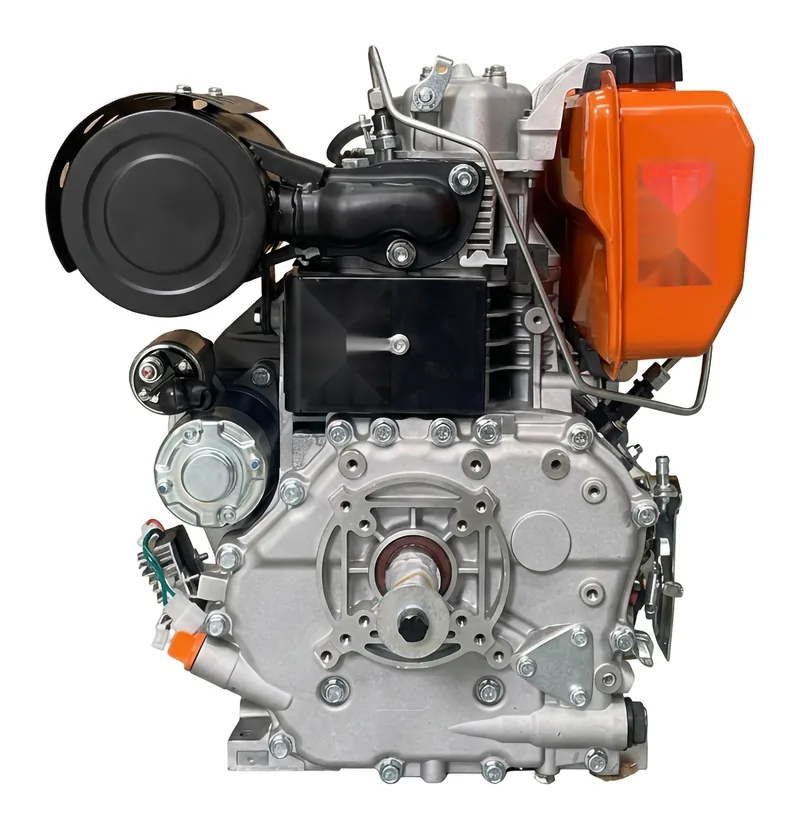

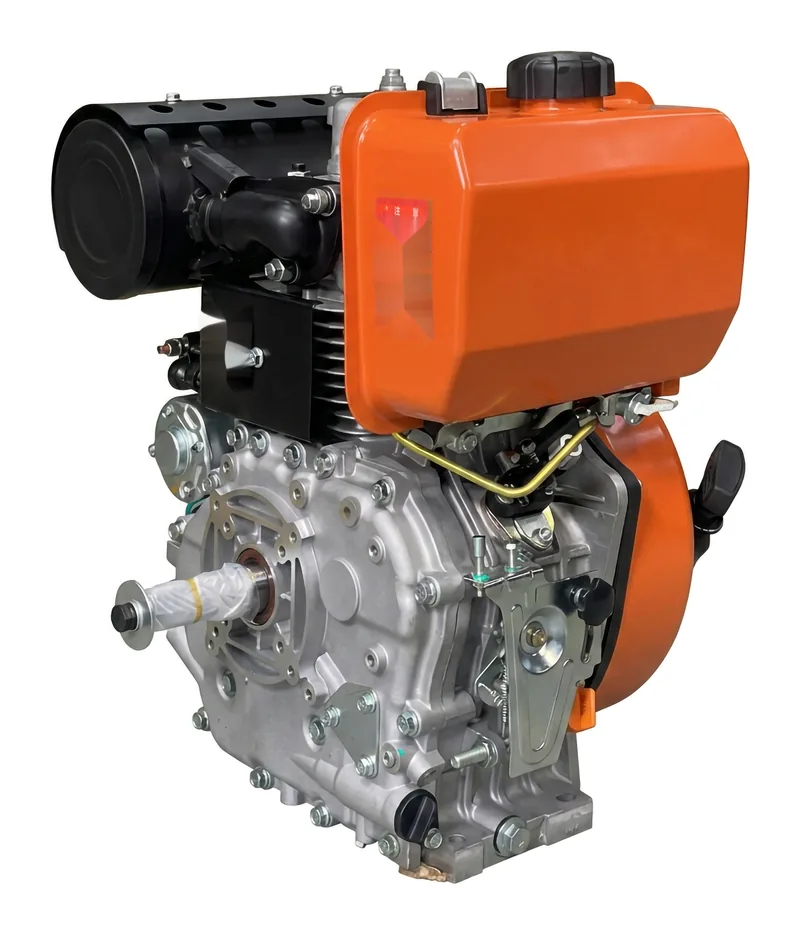

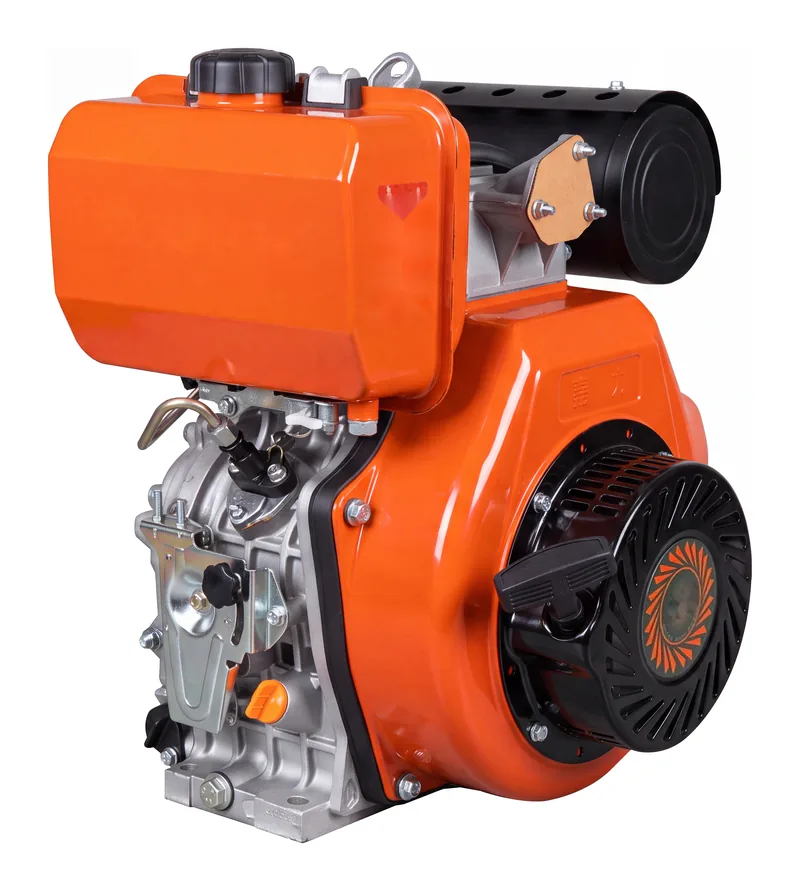

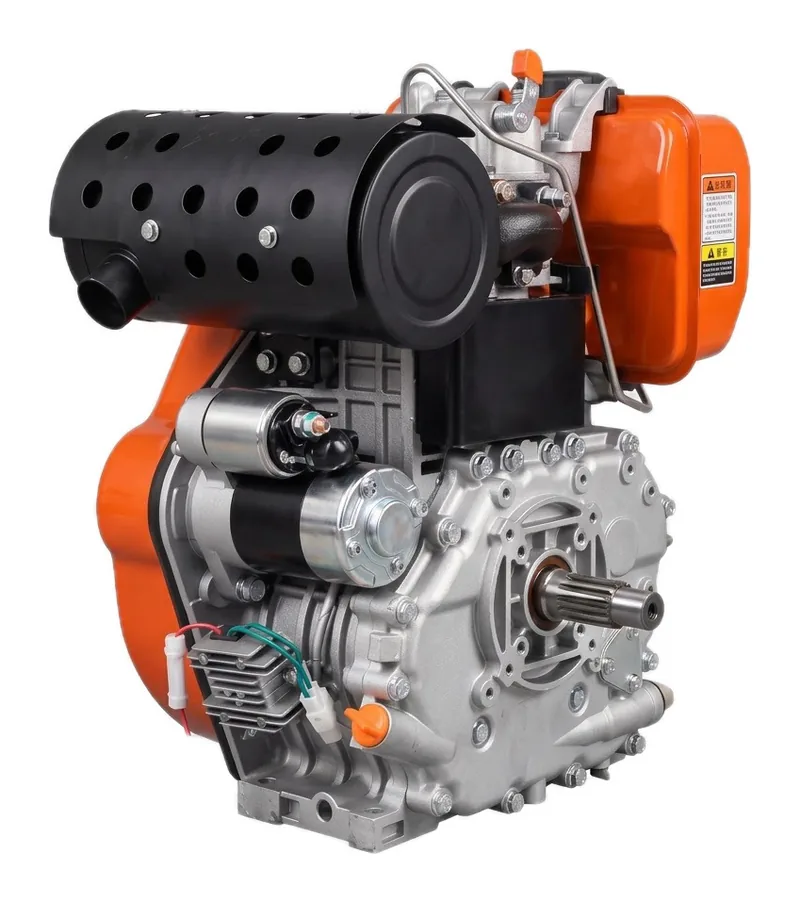

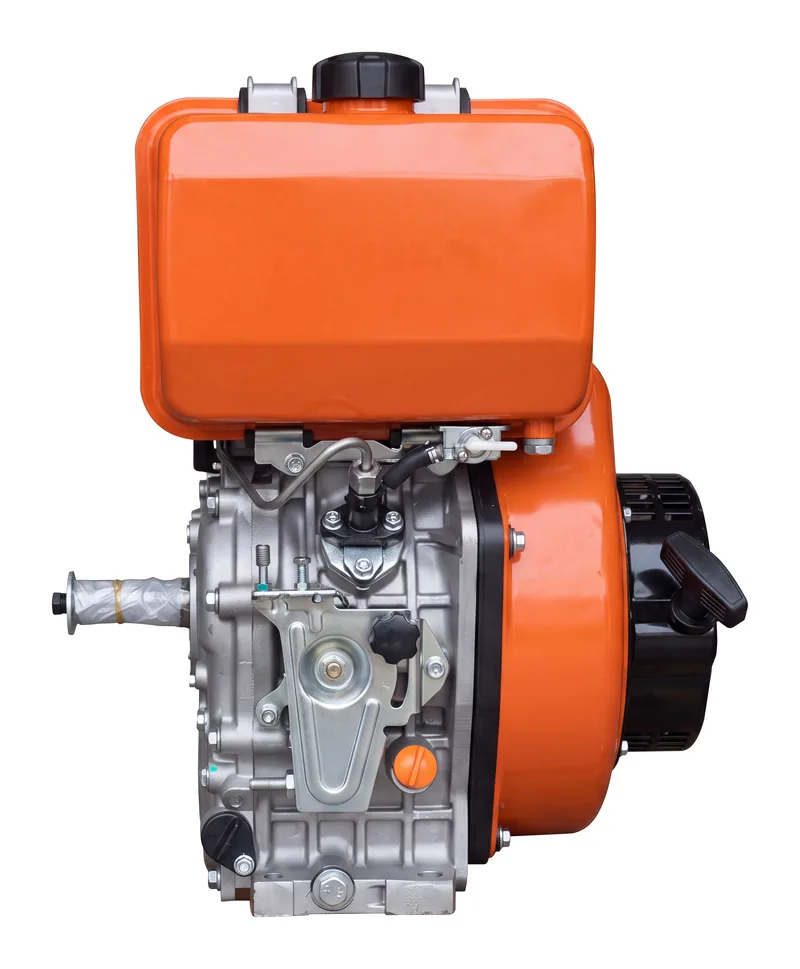

HTX-AE188 Air-Cooled Diesel Engine
Diesel Engines · Air-Cooled
7.5 kW
HTX-AE188 is a single-cylinder air-cooled diesel engine: 7.5 kW (10.2 hp) rated at 3600 rpm. 0.456 L displacement, net weight 48 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-AE188 is a single-cylinder, air-cooled, four-stroke, direct-injection diesel engine rated 7.5kW (10.2hp) at 3600rpm. Bore×stroke 88×75mm, displacement 0.456L, maximum torque 22.9 N.m. Forced air cooling needs no radiator or coolant. Electric start, 1.65L oil capacity, 48kg net. For generator sets, water pumps, construction and farm machinery, worldwide.
Technical Specifications
- Rated power
- 7.5kW10.2hp
- Displacement
- 0.456L
- Net weight
- 48kg
- Rated speed
- 3600 rpm
- Rated power
- 7.5 / 10.2hp kW / hp
- Bore x Stroke
- 88 x 75 mm
- Max torque
- 22.9 N.m
- Oil capacity
- 1.65 L
- Fuel tank capacity
- 5.5 L
- Start mode
- Electric start
- Overall dimension
- 420*440*495 mm
Key Features
- Single-cylinder air-cooled diesel, 7.5kW at 3600rpm
- Direct injection
- Maximum torque 22.9 N.m
- Forced air cooling, no radiator or coolant
- 12V electric start
Applications
- Generator Set
- Water Pump
- Light Construction
- Agriculture
Ordering & Export
- OEM / ODM
- For distributors: private label & custom configuration
- Volume pricing
- Quoted by order volume · samples on request
- Export packaging
- Confirmed with each order
- Quality inspection
- Pre-shipment & third-party (SGS / BV) welcome
- Engineering support
- Model selection & sizing assistance
- Worldwide export
- Shipped from China, multi-region experience
