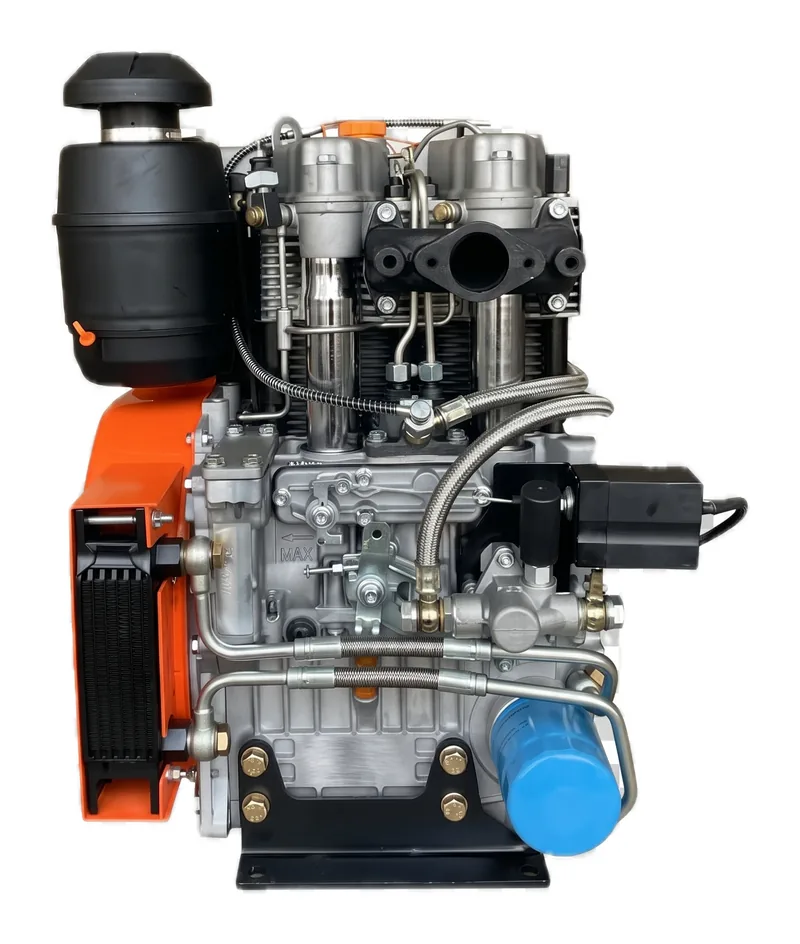

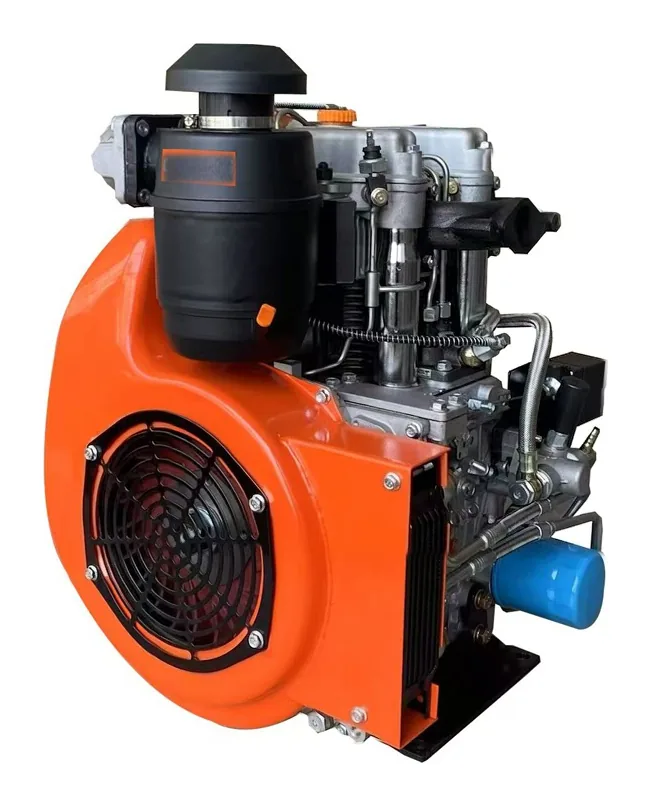

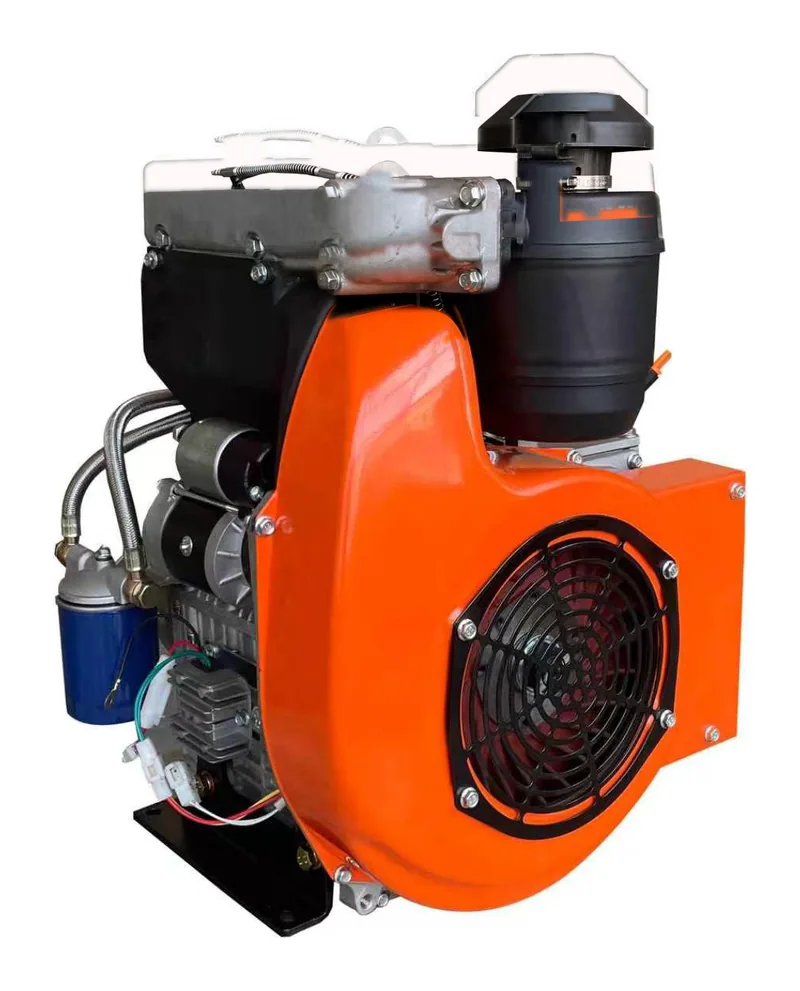

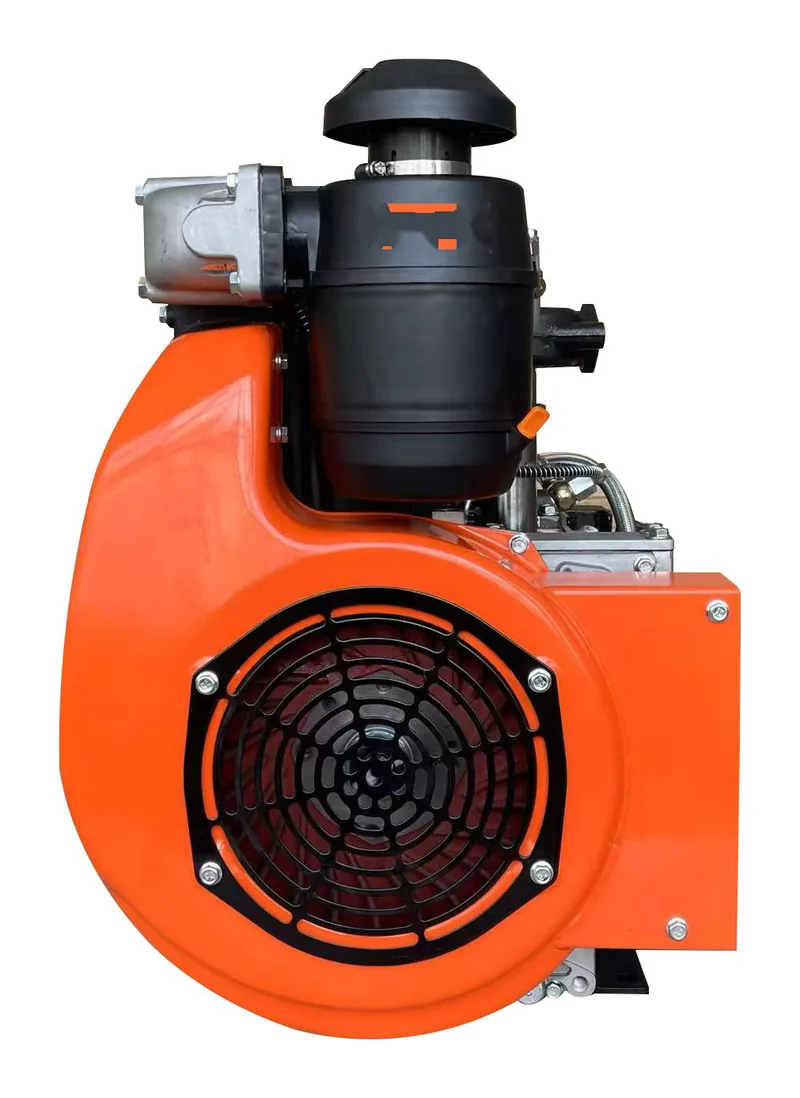

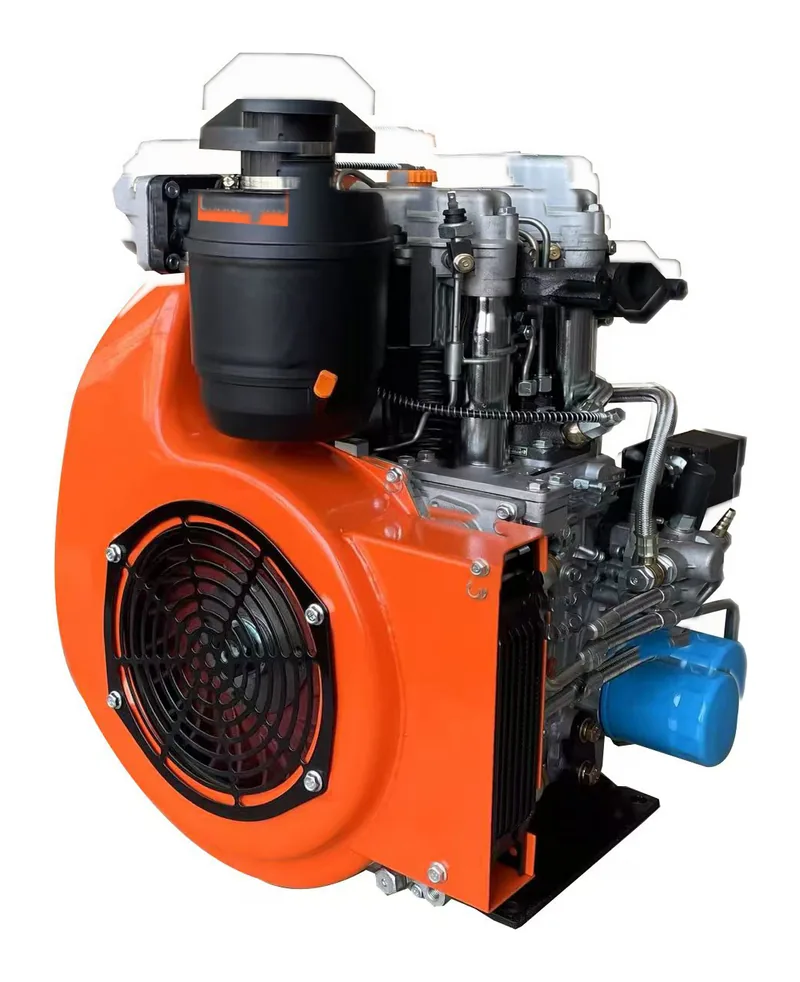

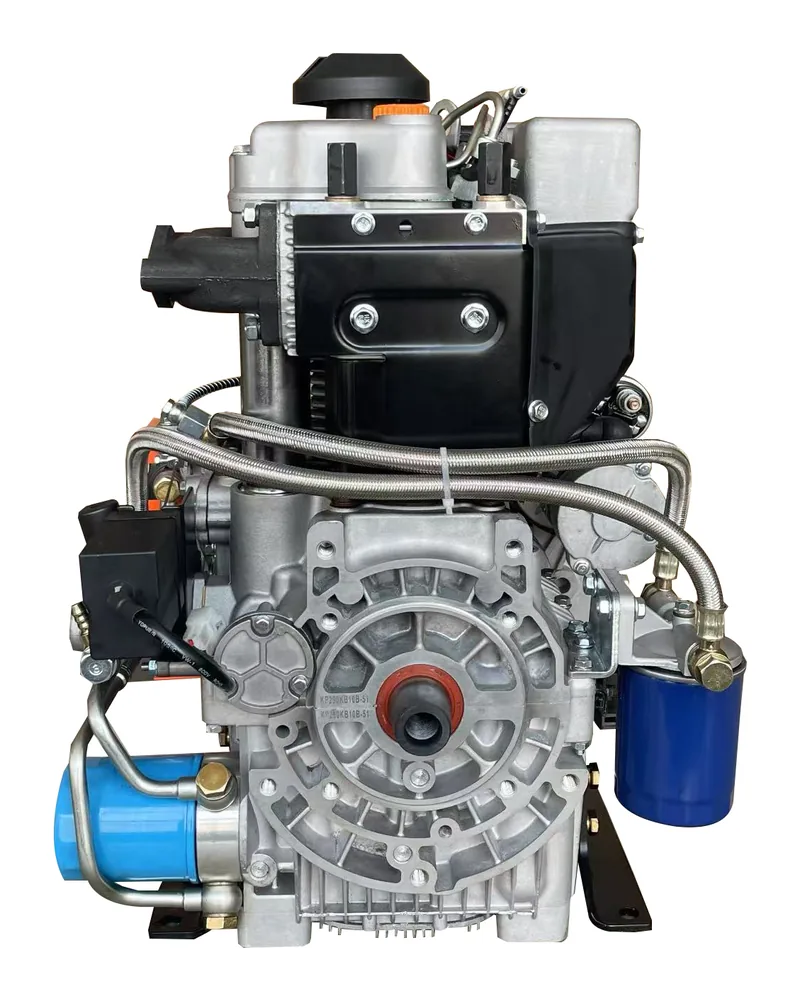

HTX-AE292 Air-Cooled Diesel Engine
Diesel Engines · Air-Cooled
14.9 kW
HTX-AE292 is a twin-cylinder air-cooled diesel engine: 14.9 kW (20.3 hp) rated at 3600 rpm. 0.997 L displacement, fuel consumption 240 g/kWh, net weight 78 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-AE292 is a in-line twin-cylinder, air-cooled, four-stroke, direct-injection diesel engine rated 14.9kW (20.3hp) at 3600rpm. Bore×stroke 2-92×75mm, displacement 0.997L, maximum torque 39.53 N.m. Two cylinders run smoother than a single and carry the 10 to 13kVA generator sets and larger pumps. Forced air cooling needs no radiator or coolant. Electric start, 2.8L oil capacity, 78kg net. For generator sets, water pumps, construction and farm machinery, worldwide.
Technical Specifications
- Rated power
- 14.9kW20.3hp
- Displacement
- 0.997L
- Net weight
- 78kg
- Rated speed
- 3600 rpm
- Rated power
- 14.9 / 20.3hp kW / hp
- Bore x Stroke
- 2-92 x 75 mm
- Compression ratio
- 19:1
- Max torque
- 39.53 N.m
- Fuel consumption
- ≤240 g/kW.h
- Oil capacity
- 2.8 L
- Start mode
- Electric start
- Overall dimension
- 582*462*582 mm
Key Features
- In-line twin-cylinder air-cooled diesel, 14.9kW at 3600rpm
- Direct injection
- Maximum torque 39.53 N.m
- Forced air cooling, no radiator or coolant
- 12V electric start
Applications
- Generator Set
- Water Pump
- Light Construction
- Agriculture
