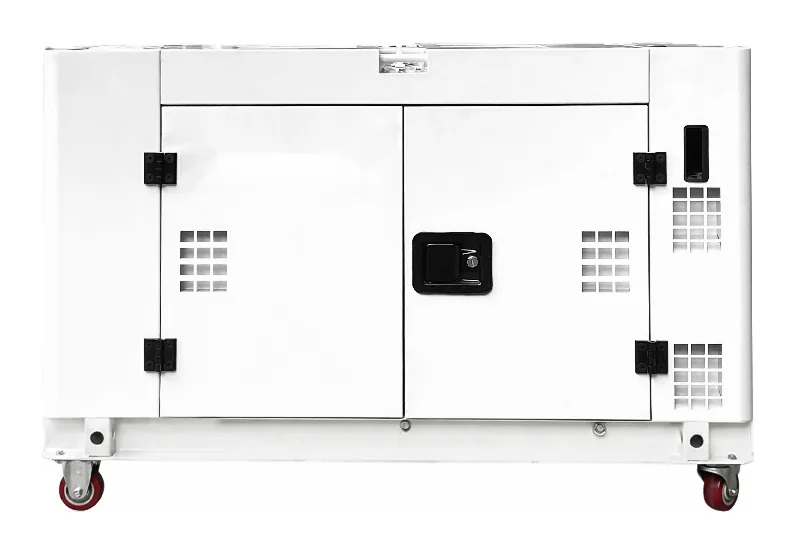

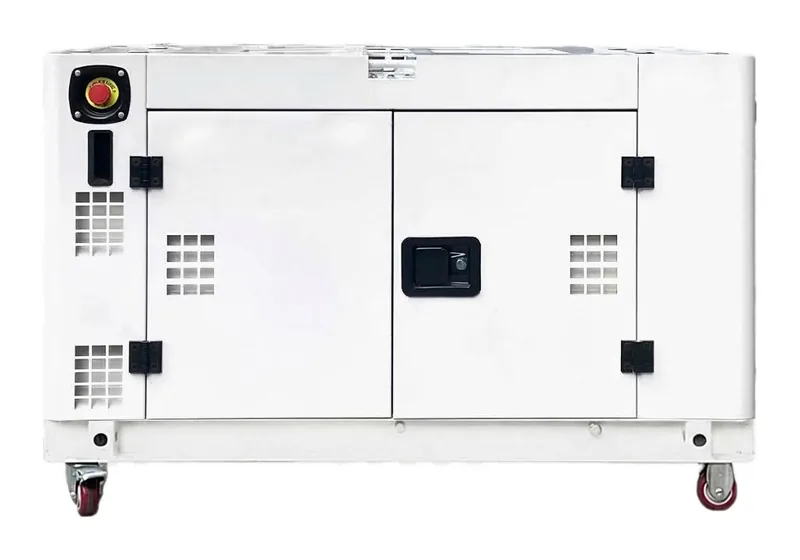

13kVA Silent Diesel Generator Set
Diesel Generators · Silent
13 kVA
HTX-G20K-S is a silent (canopied) diesel generator set: 13 kVA (single-phase) / 16.25 kVA (three-phase) prime power at 50 Hz, 13 kVA (single-phase) / 16.25 kVA (three-phase) at 60 Hz. Air-cooled twin-cylinder engine, 74 dB(A) at 7 m, 28 L fuel tank.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Built for your grid 50 or 60 Hz, voltage and panel language for your country.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-G20K-S is a 13kVA prime / 14.3kVA standby silent diesel generator set in single-phase output, and 16.25kVA prime / 17.88kVA standby in three-phase. Both outputs deliver the same kW, so one set covers 115/230V single-phase and 400/230V three-phase loads. A copper-wound alternator with AVR keeps the output voltage stable. The sound-attenuated canopy brings the noise down to 74 dB(A) at 7 m. Power comes from a V-twin air-cooled direct-injection diesel engine (2-95×88mm bore×stroke, 1.247L, 17.5kW) with 12V electric start. Fuel tank: 28L. Built for hotels, hospitals, offices, telecom sites and other places where noise matters, worldwide. Available in 50 Hz and 60 Hz versions; both ratings are listed in the specifications below.
Technical Specifications
- Prime power
- 13kVA
- Net weight
- 315kg
- Fuel tank capacity
- 28L
- Prime power
- 13 kVA (single) / 16.25 kVA (three)
- Prime power (60 Hz)
- 13 kVA (single) / 16.25 kVA (three)
- Standby power
- 14.3 kVA (single) / 17.88 kVA (three)
- Standby power (60 Hz)
- 14.3 kVA (single) / 17.88 kVA (three)
- Rated voltage
- 115/230 (single) / 400/230 (three) V
- Rated voltage (60 Hz)
- 120/240 (single) / 416/240 (three) V
- Phase / Frequency
- Single-phase / Three-phase, 50/60Hz, 3000/3600rpm
- Power factor
- 1.0 (single) / 0.8 (three)
- Engine model
- Air-cooled twin-cylinder
- Engine bore x stroke
- 2-95 x 88 mm
- Engine displacement
- 1.247 L
- Compression ratio
- 19.5:1
- Engine rated power
- 17.5 kW
- Oil capacity
- 3.2 L
- Start mode
- Electric start
- Battery capacity
- 12V-36Ah
- Frame type
- Sound-attenuated canopy
- Overall dimension
- 1300*670*895 mm
- Alternator type
- Copper-wound with AVR voltage stabilizer
- Noise level @ 7 m
- 74 dB(A)
Key Features
- Single-phase 13kVA or three-phase 16.25kVA from the same set
- Copper-wound alternator with AVR voltage stabilizer
- V-twin air-cooled engine, 17.5kW
- Sound-attenuated canopy, 74 dB(A) at 7 m
- 50 Hz and 60 Hz versions
- 12V electric start
Applications
Ordering & Export
- OEM / ODM
- For distributors: private label & custom configuration
- Volume pricing
- Quoted by order volume · samples on request
- Export packaging
- Confirmed with each order
- Quality inspection
- Pre-shipment & third-party (SGS / BV) welcome
- Engineering support
- Model selection & sizing assistance
- Worldwide export
- Shipped from China, multi-region experience
We'll send pricing, lead time and export terms tailored to your order.
Related Products
Ready to spec the HTX-G20K-S?
Talk to engineering for sizing, lead time, and documentation.
