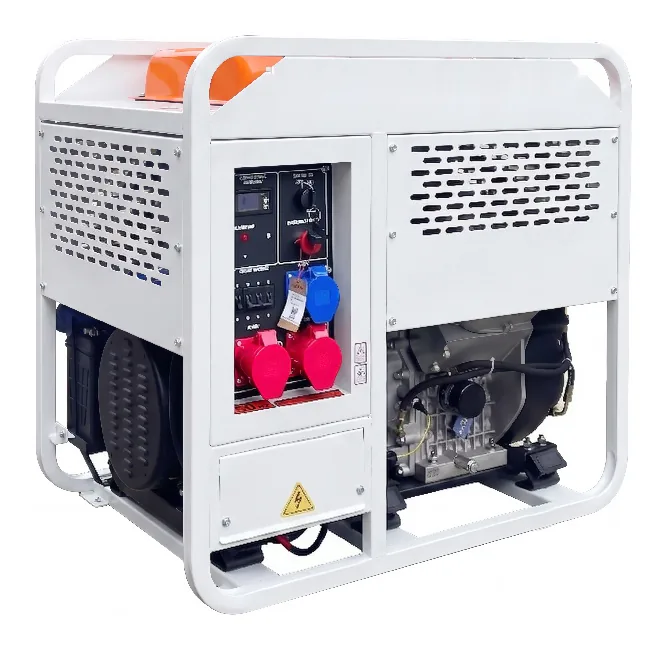

13kVA Open Frame Diesel Generator Set
Diesel Generators · Open Frame
13 kVA
HTX-G20K-XE is an open-frame diesel generator set: 13 kVA (single-phase) / 16.25 kVA (three-phase) prime power at 50 Hz, 13 kVA (single-phase) / 16.25 kVA (three-phase) at 60 Hz. Air-cooled twin-cylinder engine, 87 dB(A) at 7 m, 30 L fuel tank.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Built for your grid 50 or 60 Hz, voltage and panel language for your country.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-G20K-XE is a 13kVA prime / 14.3kVA standby diesel generator set in single-phase output, and 16.25kVA prime / 19.1kVA standby in three-phase. Both outputs deliver the same kW, so one set covers 115/230V single-phase and 400/230V three-phase loads. A copper-wound alternator with AVR keeps the output voltage stable. Power comes from a V-twin air-cooled direct-injection diesel engine (2-95×88mm bore×stroke, 1.247L, 17.5kW) with 12V electric start. Fuel tank: 30L. Built for construction sites, mining camps, workshops and standby power, worldwide. Available in 50 Hz and 60 Hz versions; both ratings are listed in the specifications below.
Technical Specifications
- Prime power
- 13kVA
- Net weight
- 230kg
- Fuel tank capacity
- 30L
- Prime power
- 13 kVA (single) / 16.25 kVA (three)
- Prime power (60 Hz)
- 13 kVA (single) / 16.25 kVA (three)
- Standby power
- 14.3 kVA (single) / 19.1 kVA (three)
- Standby power (60 Hz)
- 14.3 kVA (single) / 19.1 kVA (three)
- Rated voltage
- 115/230 (single) / 400/230 (three) V
- Rated voltage (60 Hz)
- 120/240 (single) / 416/240 (three) V
- Phase / Frequency
- Single-phase / Three-phase, 50/60Hz, 3000/3600rpm
- Power factor
- 1.0 (single) / 0.8 (three)
- Engine model
- Air-cooled twin-cylinder
- Engine bore x stroke
- 2-95 x 88 mm
- Engine displacement
- 1.247 L
- Compression ratio
- 19.5:1
- Engine rated power
- 17.5 kW
- Oil capacity
- 3.2 L
- Start mode
- Electric start
- Battery capacity
- 12V-45Ah
- Frame type
- 32mm round tube
- Overall dimension
- 920*640*1010 mm
- Alternator type
- Copper-wound with AVR voltage stabilizer
- Noise level @ 7 m
- 87-89 dB(A)
Key Features
- Single-phase 13kVA or three-phase 16.25kVA from the same set
- Copper-wound alternator with AVR voltage stabilizer
- V-twin air-cooled engine, 17.5kW
- 32mm round-tube open frame
- 50 Hz and 60 Hz versions
- 12V electric start
