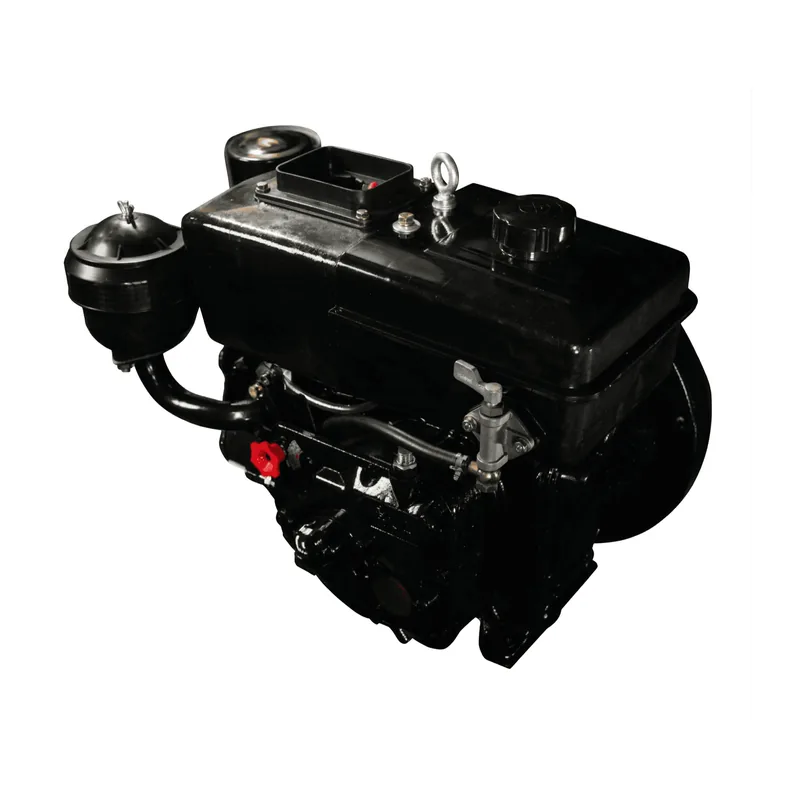

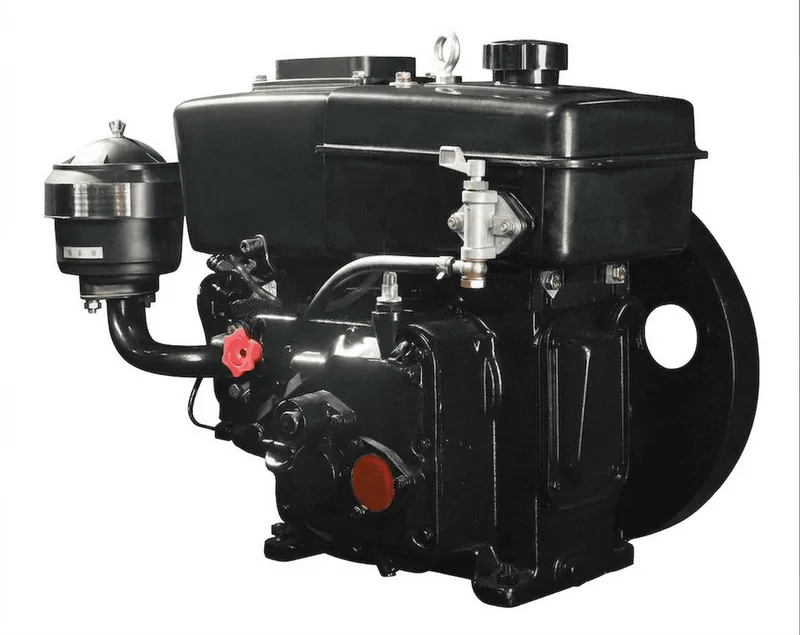

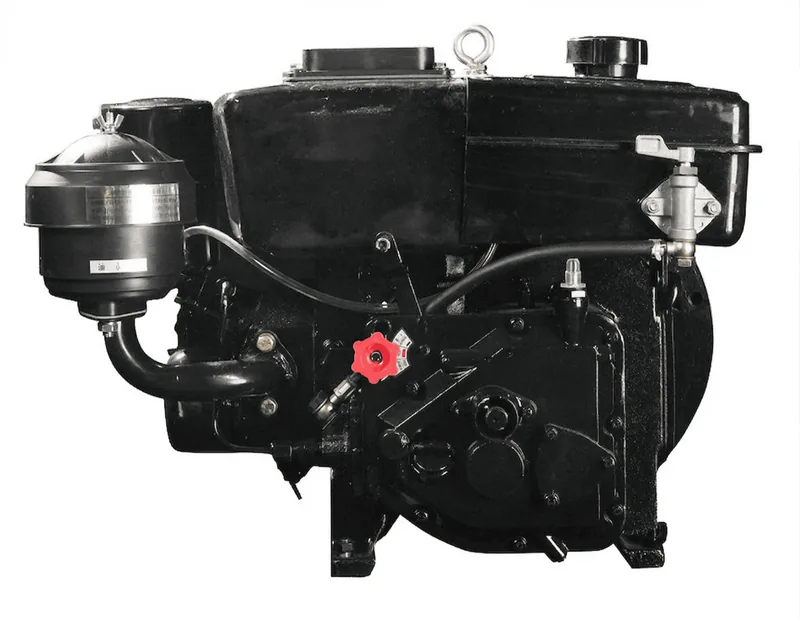

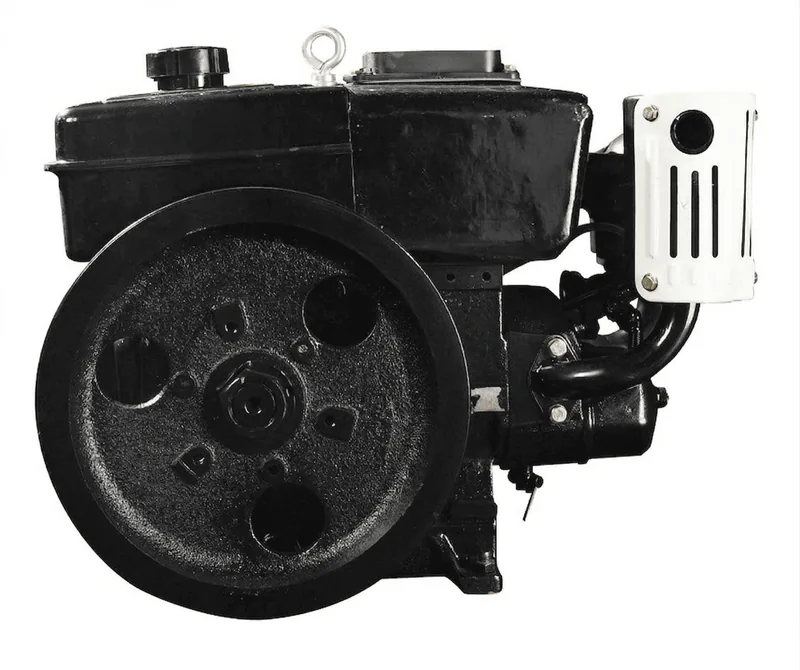

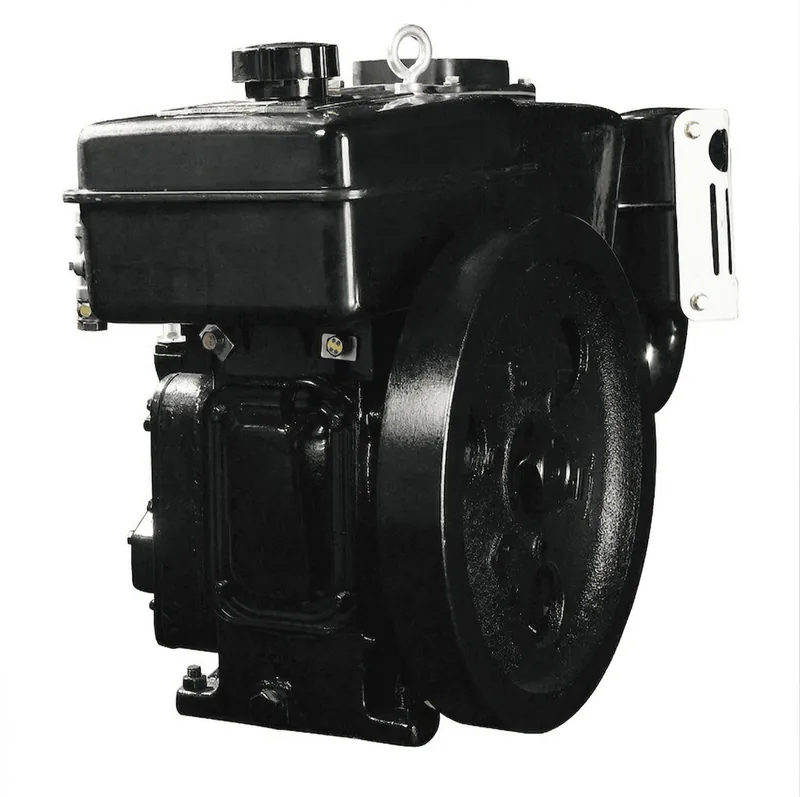

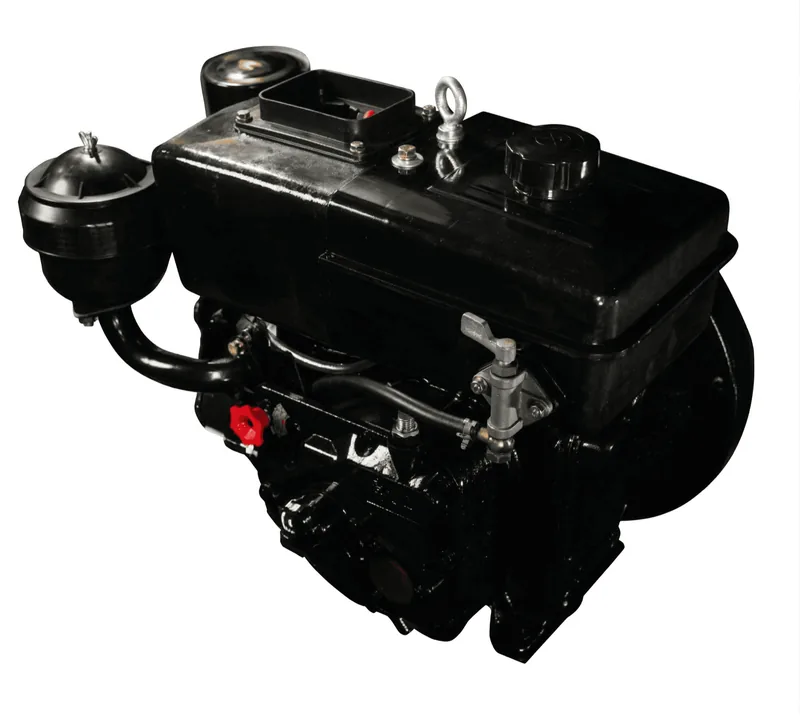

6HP Single-Cylinder Water Cooled Diesel Engine
Diesel Engines · Water-Cooled
4.41 kW
HTX-R175 is a single-cylinder water-cooled diesel engine: 4.41 kW (6 hp) rated at 2600 rpm. 0.353 L displacement, fuel consumption 280.2 g/kWh, net weight 68 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-R175 is a single-cylinder, water cooled, four-stroke diesel engine with whirling (direct-injection) combustion, delivering 4.41kW (6hp) at 2600rpm. With a bore of 75mm and stroke of 80mm (displacement 0.353L), this engine is engineered for reliable performance under demanding conditions. Key advantages include optimized combustion for low fuel consumption (280.2 g/kW.h), high structural strength for extended service life, and strong load-handling capability. Maximum torque of 18.63 N.m is delivered at 1950rpm. Starting is easy even in low temperatures thanks to the high-compression-ratio design (20:1). Built to meet the demands of small agricultural machinery, light construction equipment, generator sets, and water pump applications worldwide.
Technical Specifications
- Rated power
- 4.41kW6hp
- Displacement
- 0.353L
- Net weight
- 68kg
- Rated speed
- 2600 rpm
- Rated power
- 4.41 / 6hp kW / hp
- Max power
- 4.85 / 6.60hp kW / hp
- Bore x Stroke
- 75 x 80 mm
- Compression ratio
- 20:1
- Max torque
- 18.63 @ 1950rpm N.m
- Fuel consumption
- 280.2 g/kW.h
- Oil capacity
- 1.1 L
- Start mode
- Hand start or electric start
- Overall dimension
- 589*341*463 mm
Key Features
- Whirling (direct-injection) combustion chamber for efficient fuel burn
- Maximum torque 18.63 N.m at 1950rpm
- High compression ratio 20:1 for reliable cold starting
- Compact horizontal design for light agricultural machinery
- Famous-brand cylinder liner, piston and piston ring for sealing reliability
- Hand start or electric start options
Applications
