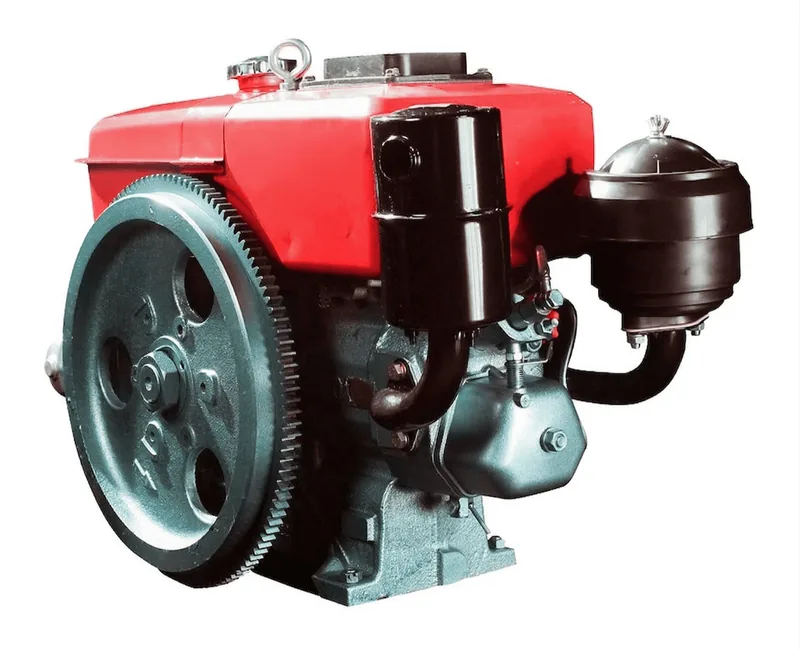

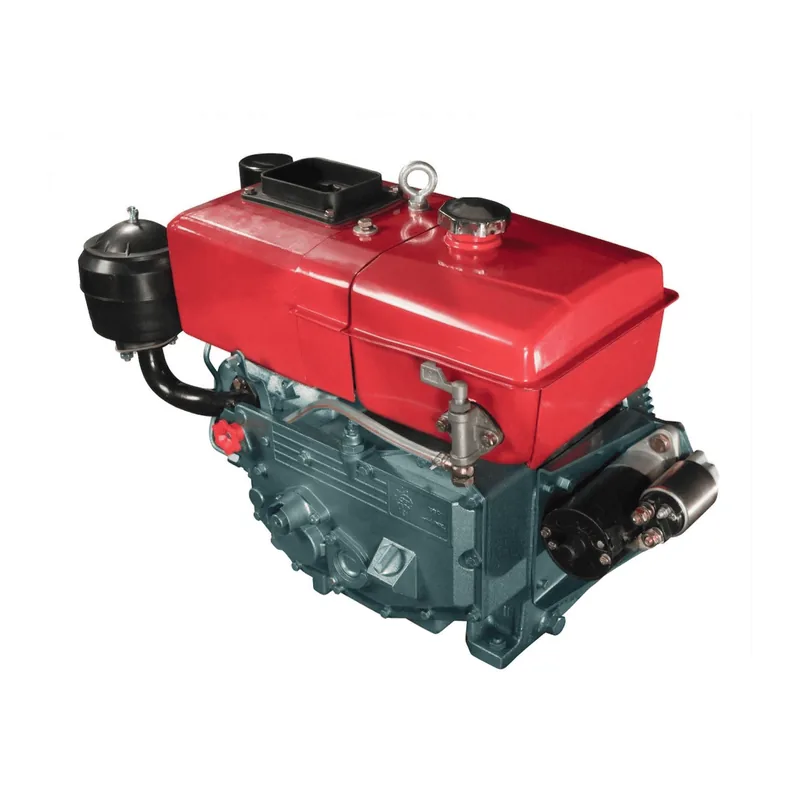

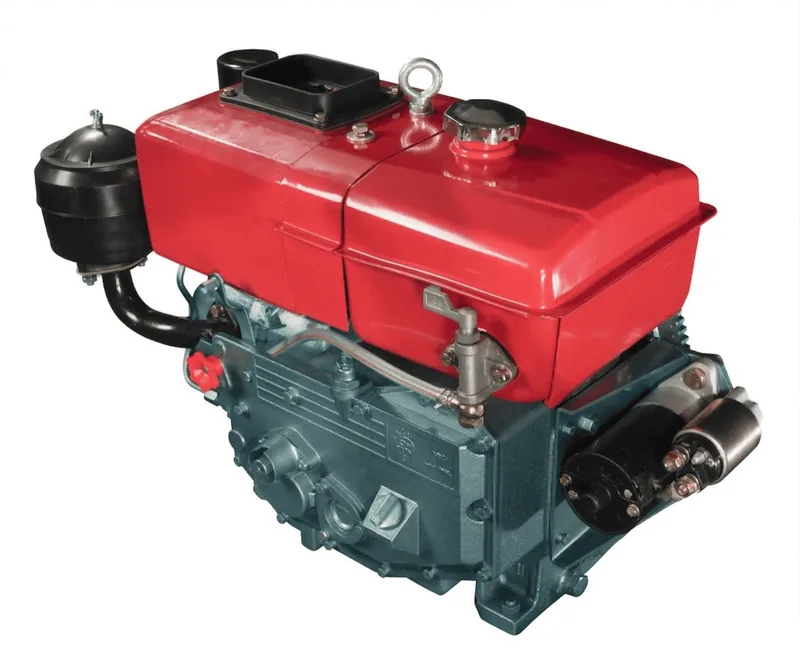

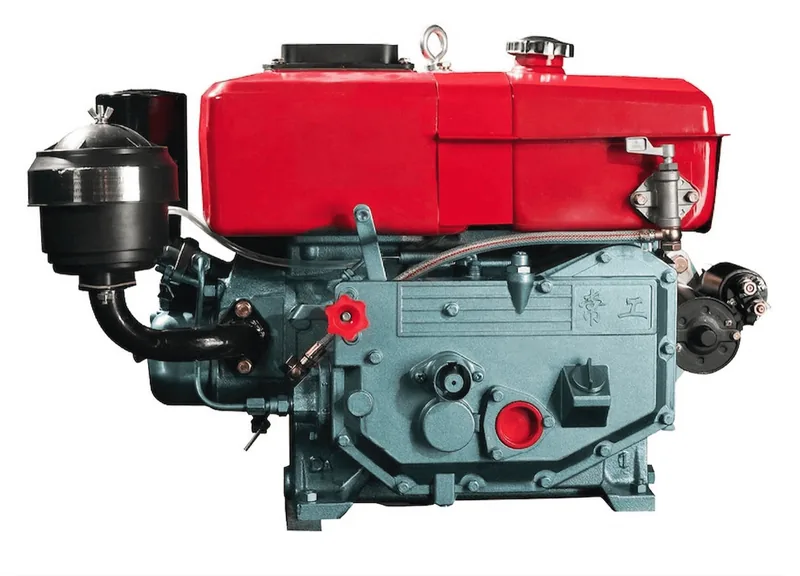

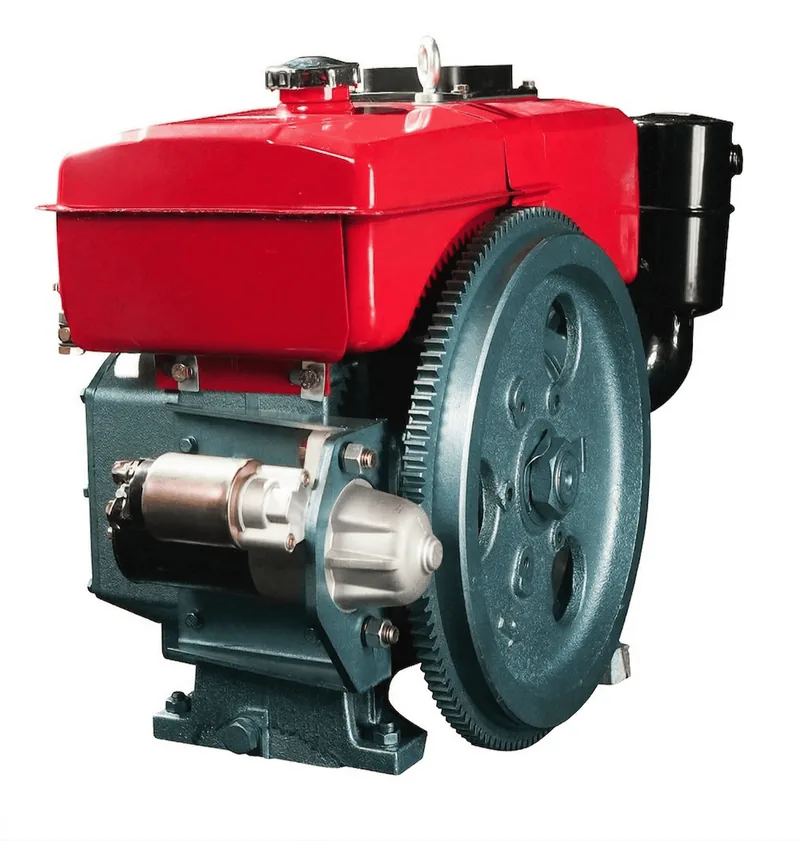

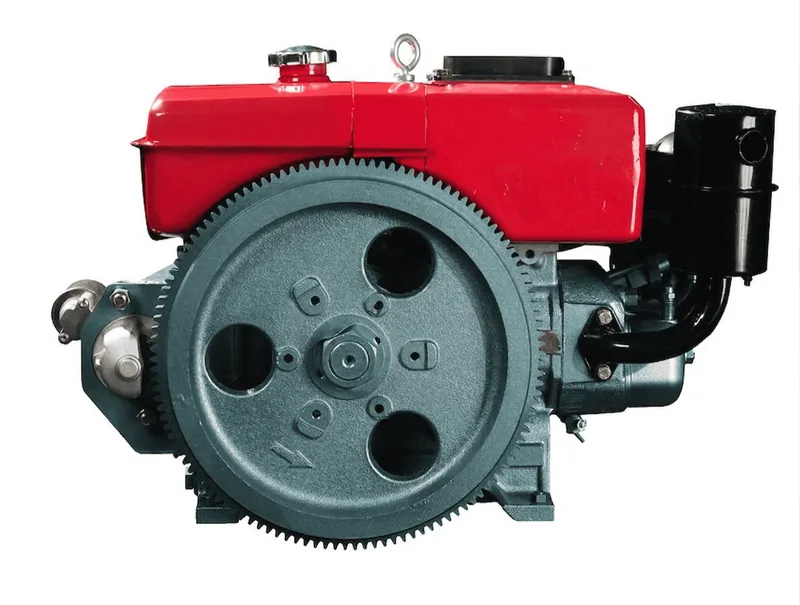

7HP Single-Cylinder Water Cooled Diesel Engine
Diesel Engines · Water-Cooled
5.15 kW
HTX-R180 is a single-cylinder water-cooled diesel engine: 5.15 kW (7 hp) rated at 2600 rpm. 0.402 L displacement, fuel consumption 278.8 g/kWh, net weight 75 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-R180 is a single-cylinder, water cooled, four-stroke diesel engine with whirling (direct-injection) combustion, delivering 5.15kW (7hp) at 2600rpm. With a bore of 80mm and stroke of 80mm (displacement 0.402L), this engine is engineered for reliable performance under demanding conditions. Key advantages include optimized combustion for low fuel consumption (278.8 g/kW.h), high structural strength for extended service life, and strong load-handling capability. Maximum torque of 21.75 N.m is delivered at 1950rpm. Starting is easy even in low temperatures thanks to the high-compression-ratio design (20:1). Built to meet the demands of small agricultural machinery, light construction equipment, generator sets, and water pump applications worldwide.
Technical Specifications
- Rated power
- 5.15kW7hp
- Displacement
- 0.402L
- Net weight
- 75kg
- Rated speed
- 2600 rpm
- Rated power
- 5.15 / 7hp kW / hp
- Max power
- 5.67 / 7.70hp kW / hp
- Bore x Stroke
- 80 x 80 mm
- Compression ratio
- 20:1
- Max torque
- 21.75 @ 1950rpm N.m
- Fuel consumption
- 278.8 g/kW.h
- Oil capacity
- 1.1 L
- Start mode
- Hand start or electric start
- Overall dimension
- 625*341*463 mm
Key Features
- Whirling (direct-injection) combustion chamber for efficient fuel burn
- Maximum torque 21.75 N.m at 1950rpm
- High compression ratio 20:1 for reliable cold starting
- Compact horizontal design for light agricultural machinery
- Famous-brand cylinder liner, piston and piston ring for sealing reliability
- Hand start or electric start options
Applications
