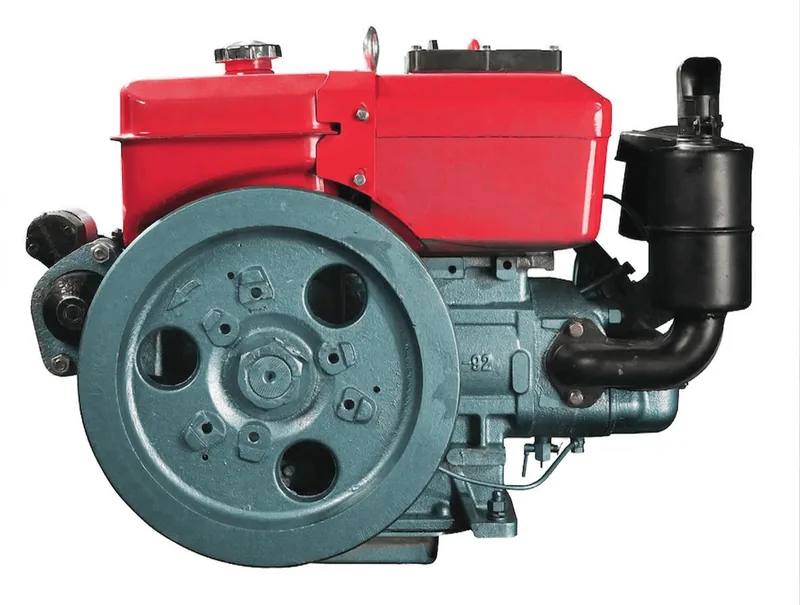

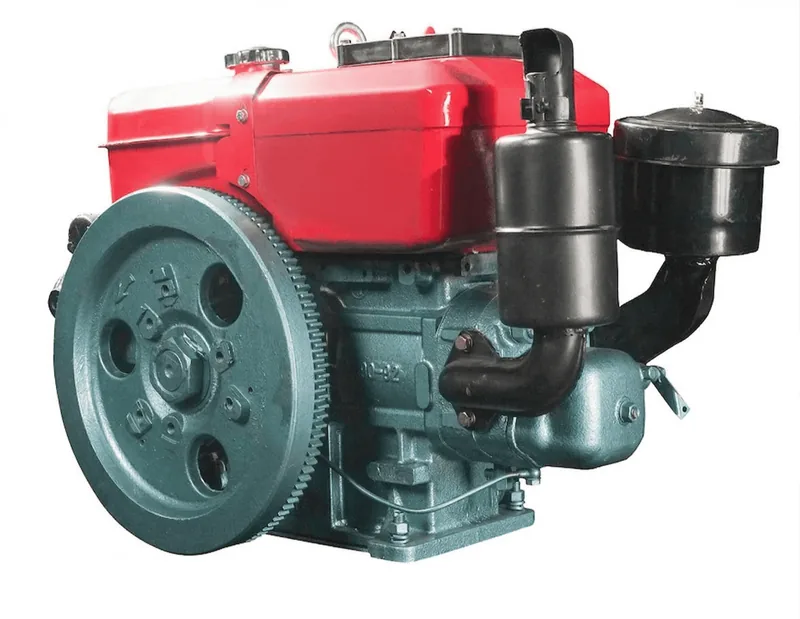

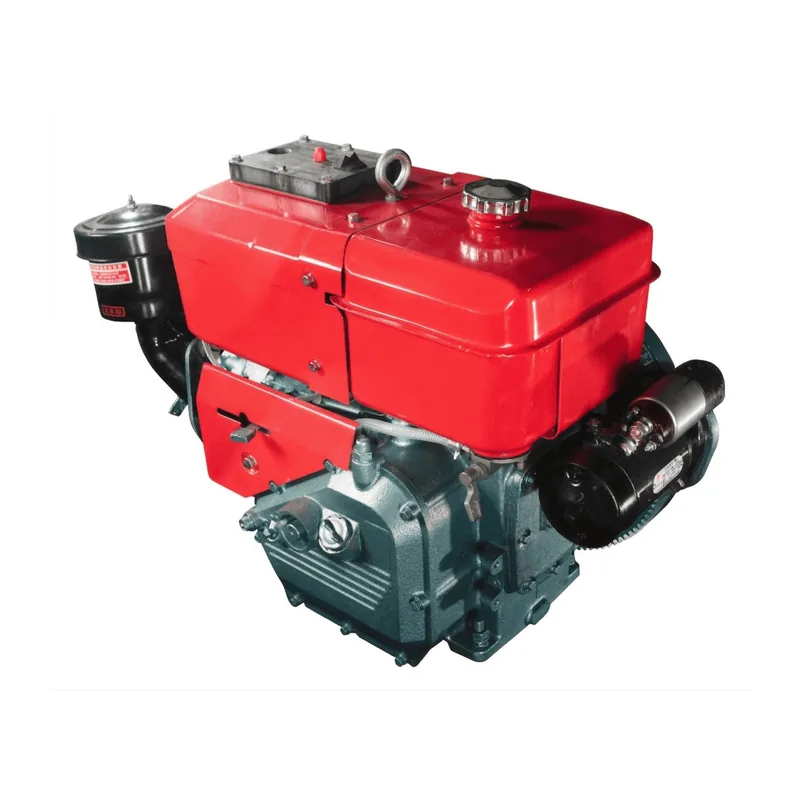

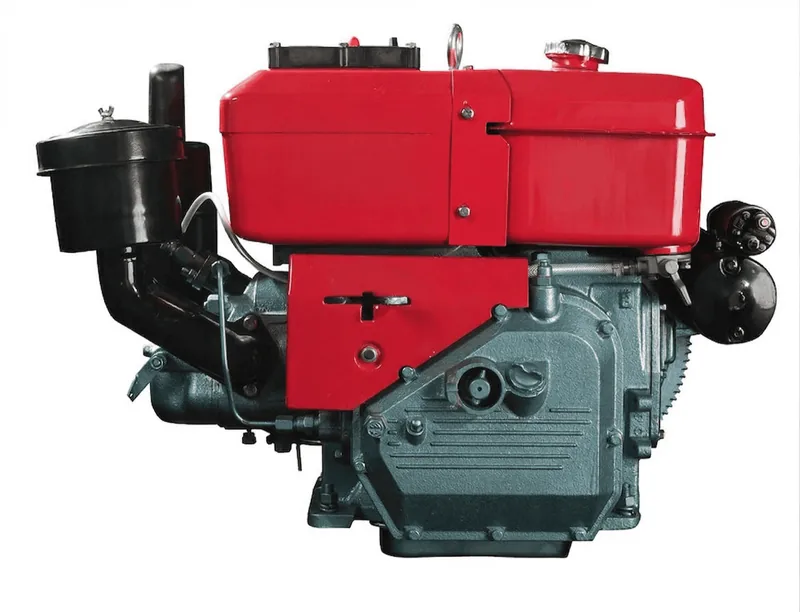

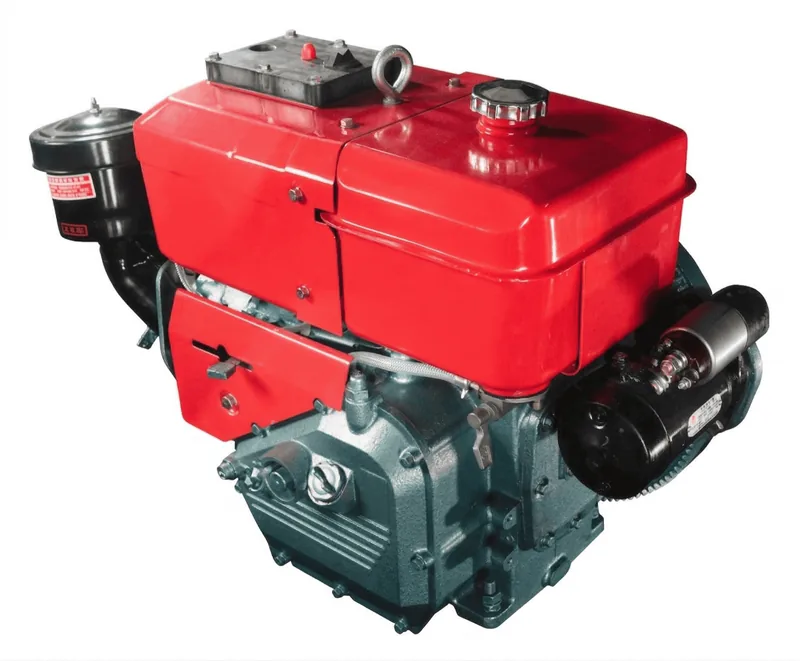

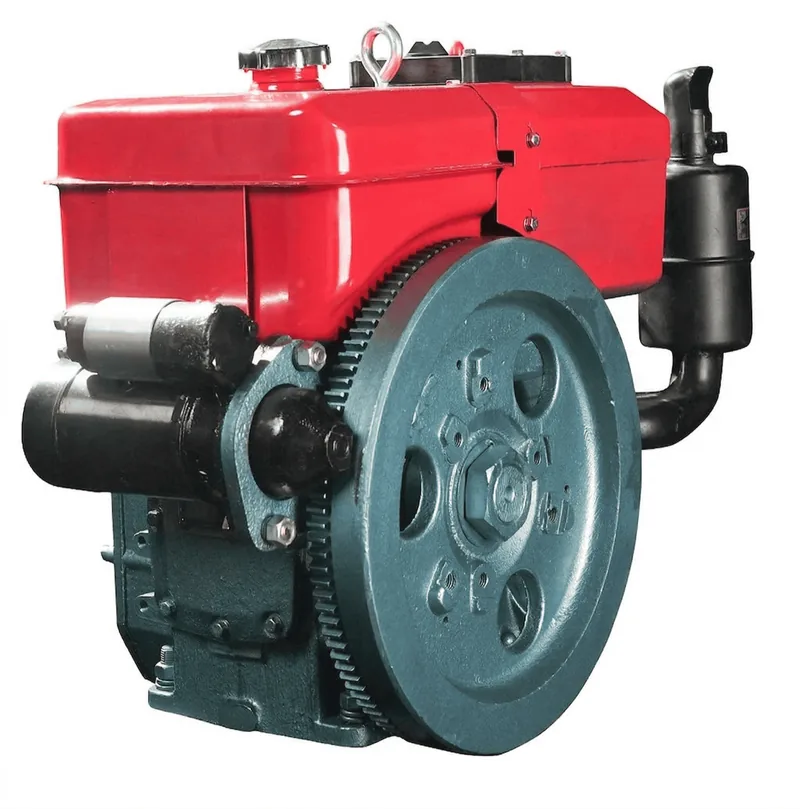

9.5HP Single-Cylinder Water Cooled Diesel Engine
Diesel Engines · Water-Cooled
7 kW
HTX-R190 is a single-cylinder water-cooled diesel engine: 7.0 kW (9.52 hp) rated at 2400 rpm. 0.573 L displacement, fuel consumption 252 g/kWh, net weight 95 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-R190 is a single-cylinder, water cooled, four-stroke diesel engine with whirling (direct-injection) combustion, delivering 7.0kW (9.52hp) at 2400rpm. With a displacement of 0.573L, this engine is engineered for reliable performance under demanding conditions. Key advantages include optimized combustion for low fuel consumption (252 g/kW.h), high structural strength for extended service life, and strong load-handling capability. Maximum torque of 34.94 N.m is delivered at 1650rpm. Starting is easy even in low temperatures thanks to the high-compression-ratio design (19:1). Built to meet the demands of small agricultural machinery, light construction equipment, generator sets, and water pump applications worldwide.
Technical Specifications
- Rated power
- 7kW9.52hp
- Displacement
- 0.573L
- Net weight
- 95kg
- Rated speed
- 2400 rpm
- Rated power
- 7.0 / 9.52hp kW / hp
- Max power
- 7.70 / 10.47hp kW / hp
- Bore x Stroke
- 90 x 90 mm
- Compression ratio
- 19:1
- Max torque
- 34.94 @ 1650rpm N.m
- Fuel consumption
- 252 g/kW.h
- Oil capacity
- 1.65 L
- Start mode
- Hand start or electric start
- Overall dimension
- 670*378*560 mm
Key Features
- Whirling (direct-injection) combustion chamber for efficient fuel burn
- Maximum torque 34.94 N.m at 1650rpm
- High compression ratio 19:1 for reliable cold starting
- Compact horizontal design for light agricultural machinery
- Famous-brand cylinder liner, piston and piston ring for sealing reliability
- Hand start or electric start options
Applications
- Agriculture
- Water Pump
- Generator Set
- Small Tractor
- Garden Machinery
Ordering & Export
- OEM / ODM
- For distributors: private label & custom configuration
- Volume pricing
- Quoted by order volume · samples on request
- Export packaging
- Confirmed with each order
- Quality inspection
- Pre-shipment & third-party (SGS / BV) welcome
- Engineering support
- Model selection & sizing assistance
- Worldwide export
- Shipped from China, multi-region experience
