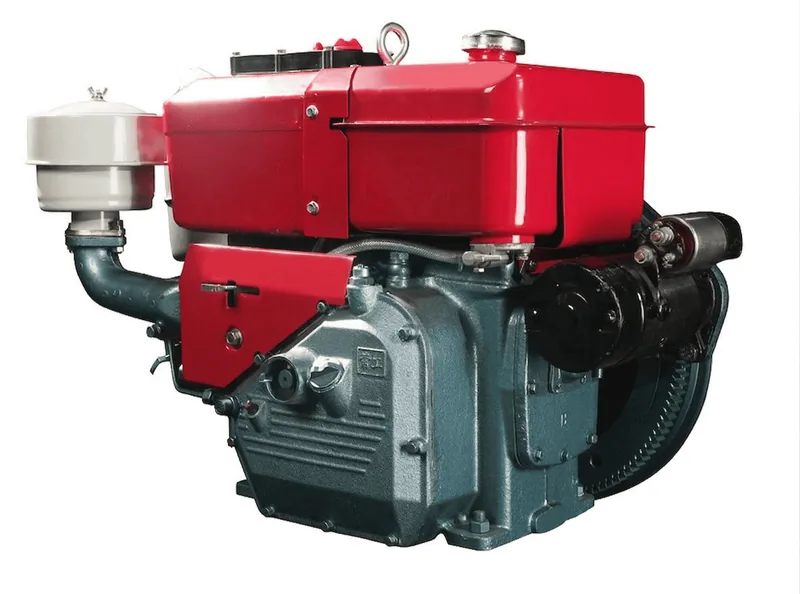

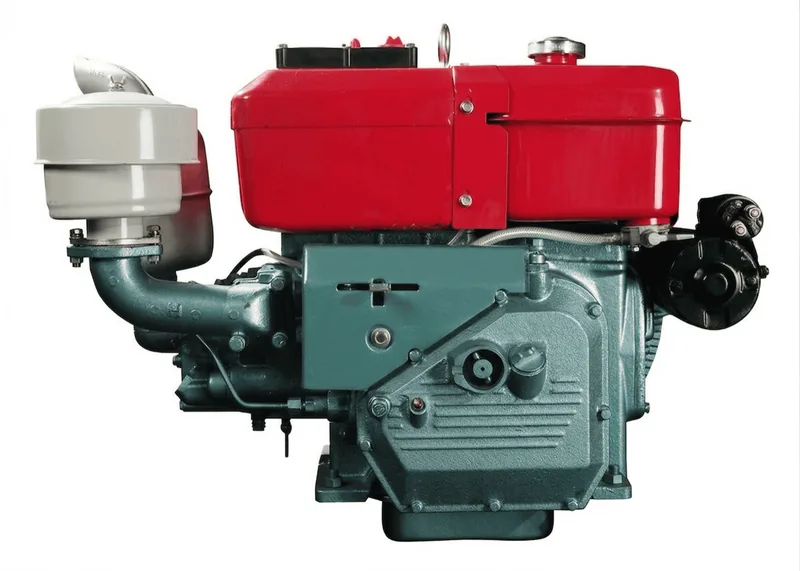

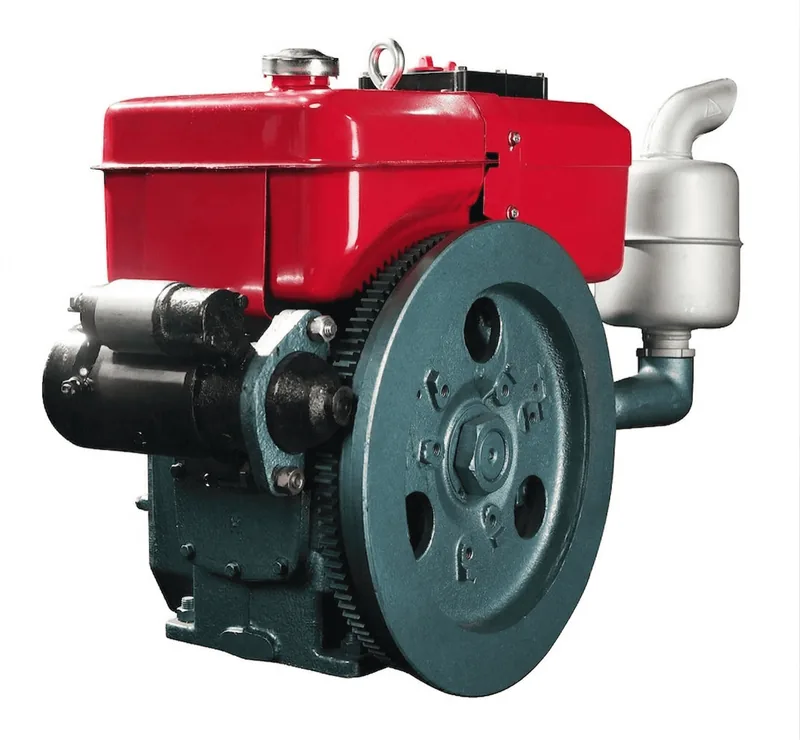

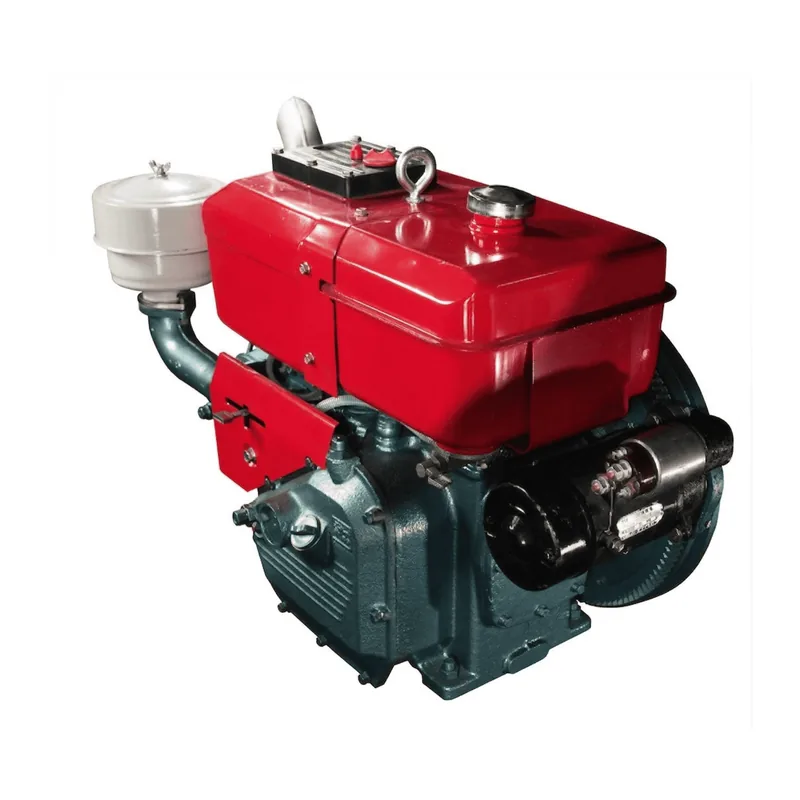

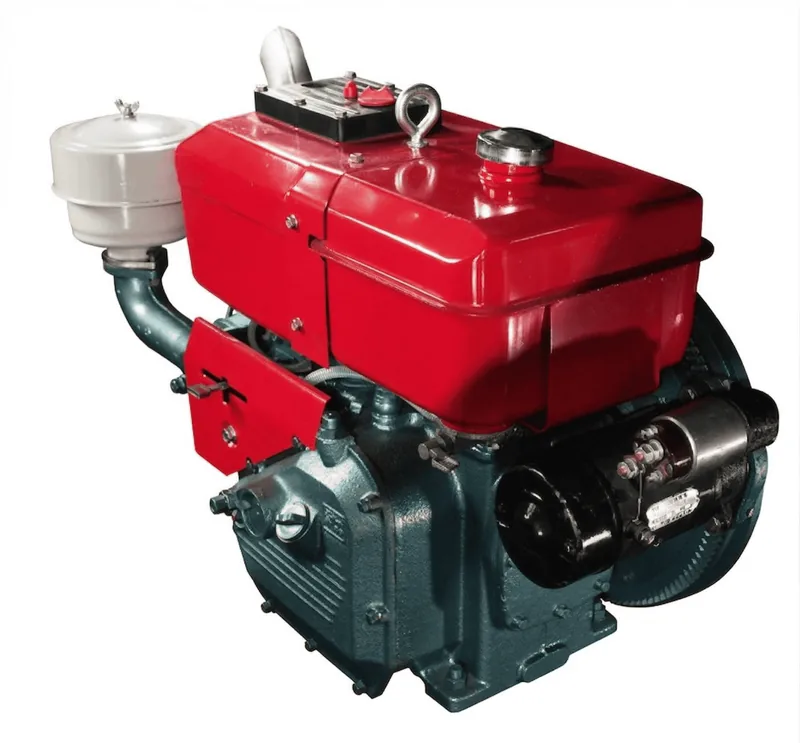

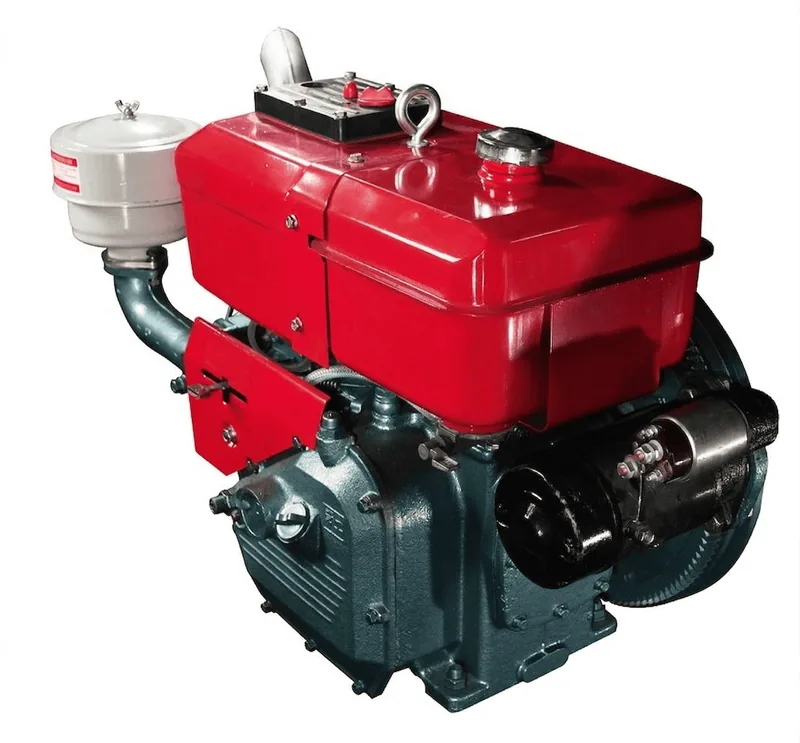

HTX-WE16 Water-Cooled Diesel Engine
Diesel Engines · Water-Cooled
10.2 kW
HTX-WE16 is a single-cylinder water-cooled diesel engine: 10.2 kW (13.87 hp) rated at 2400 rpm. 0.785 L displacement, fuel consumption 240 g/kWh, net weight 102 kg.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-WE16 is a single-cylinder, water cooled, four-stroke diesel engine with whirling (direct-injection) combustion, delivering 10.2kW (13.87hp) at 2400rpm. With a displacement of 0.785L, this engine is engineered for reliable performance under demanding conditions. Key advantages include optimized combustion for low fuel consumption (240 g/kW.h), high structural strength for extended service life, and strong load-handling capability. Maximum torque of 50.92 N.m is delivered at 1650rpm. Starting is easy even in low temperatures thanks to the high-compression-ratio design (19:1). Built to meet the demands of small agricultural machinery, light construction equipment, generator sets, and water pump applications worldwide.
Technical Specifications
- Rated power
- 10.2kW13.87hp
- Displacement
- 0.785L
- Net weight
- 102kg
- Rated speed
- 2400 rpm
- Rated power
- 10.2 / 13.87hp kW / hp
- Max power
- 11.22 / 15.26hp kW / hp
- Compression ratio
- 19:1
- Max torque
- 50.92 @ 1650rpm N.m
- Fuel consumption
- 240 g/kW.h
- Start mode
- Hand start or electric start
- Overall dimension
- 730*390*570 mm
Key Features
- Whirling (direct-injection) combustion chamber for efficient fuel burn
- Maximum torque 50.92 N.m at 1650rpm for strong load handling
- Low fuel consumption of 240 g/kW.h at the rated point
- High compression ratio 19:1 for reliable cold starting
- Water-cooled horizontal design for sustained continuous duty
- Hand start or electric start options
Applications
- Agriculture
- Construction
- Generator Set
- Water Pump
