3" Diesel Water Pump
Water Pumps · Standard
3.7 kW
HTX-WP30 is a 3-inch (80 mm) diesel water pump: rated 40 m³/h at 18 m head, 6 m rated suction head. HTX-AE178 air-cooled engine, 3.7 kW.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.

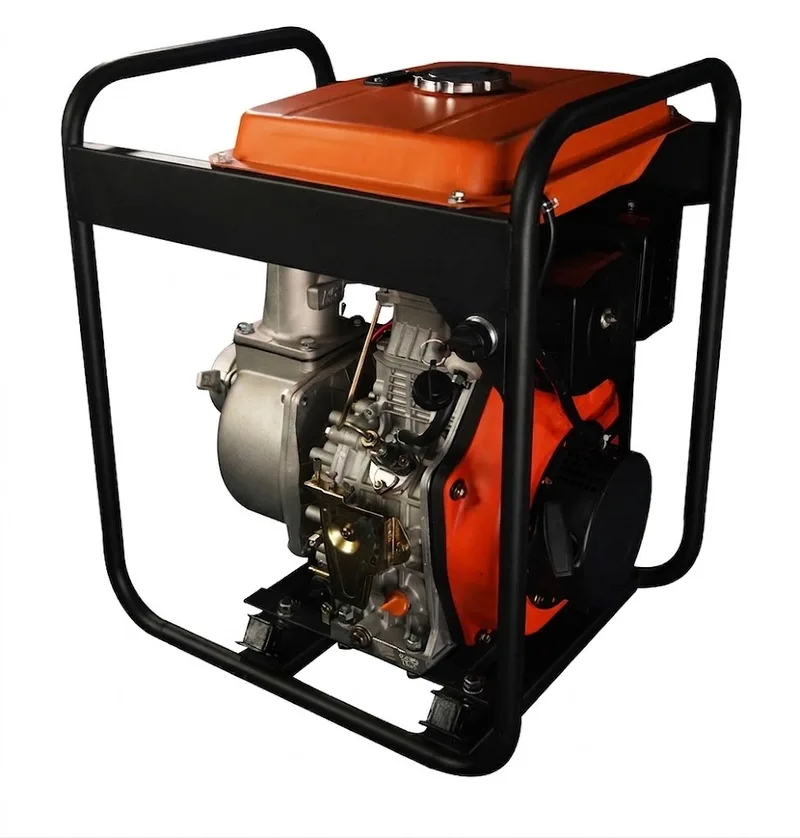

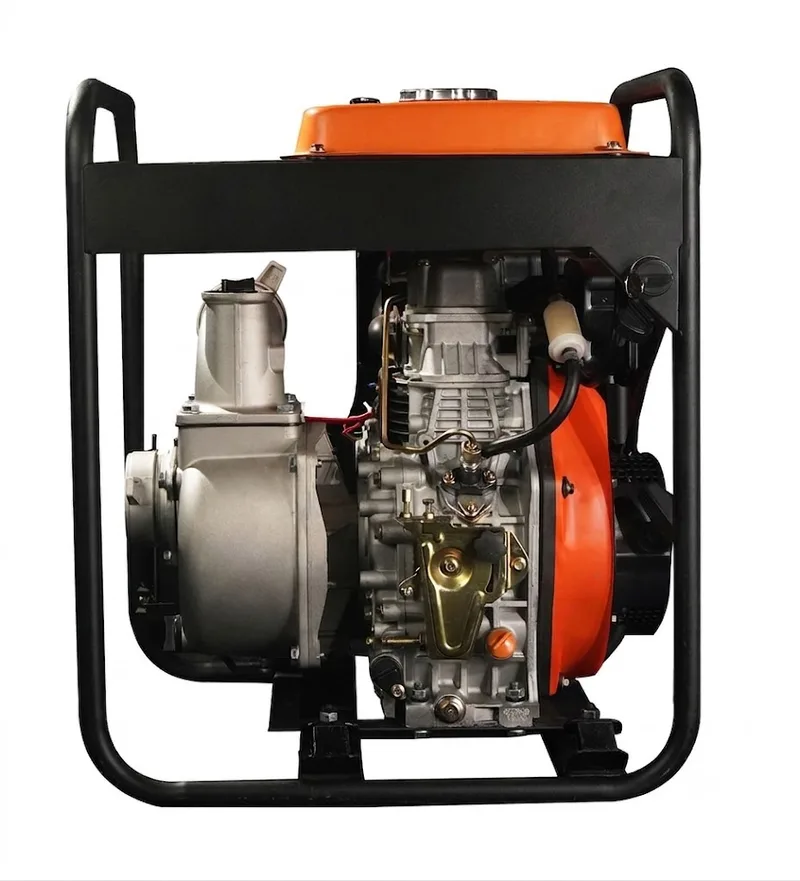

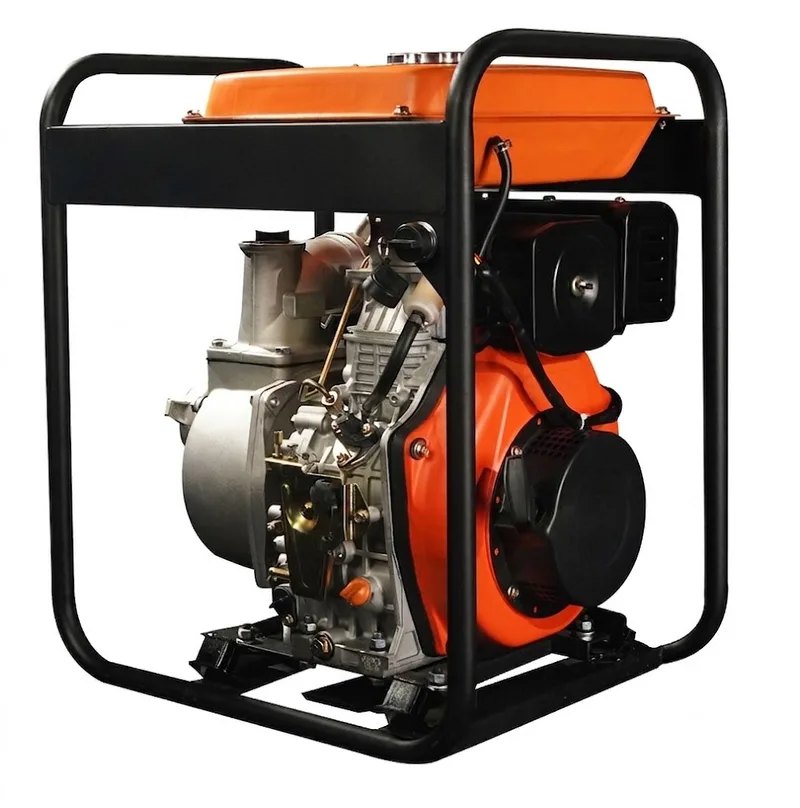

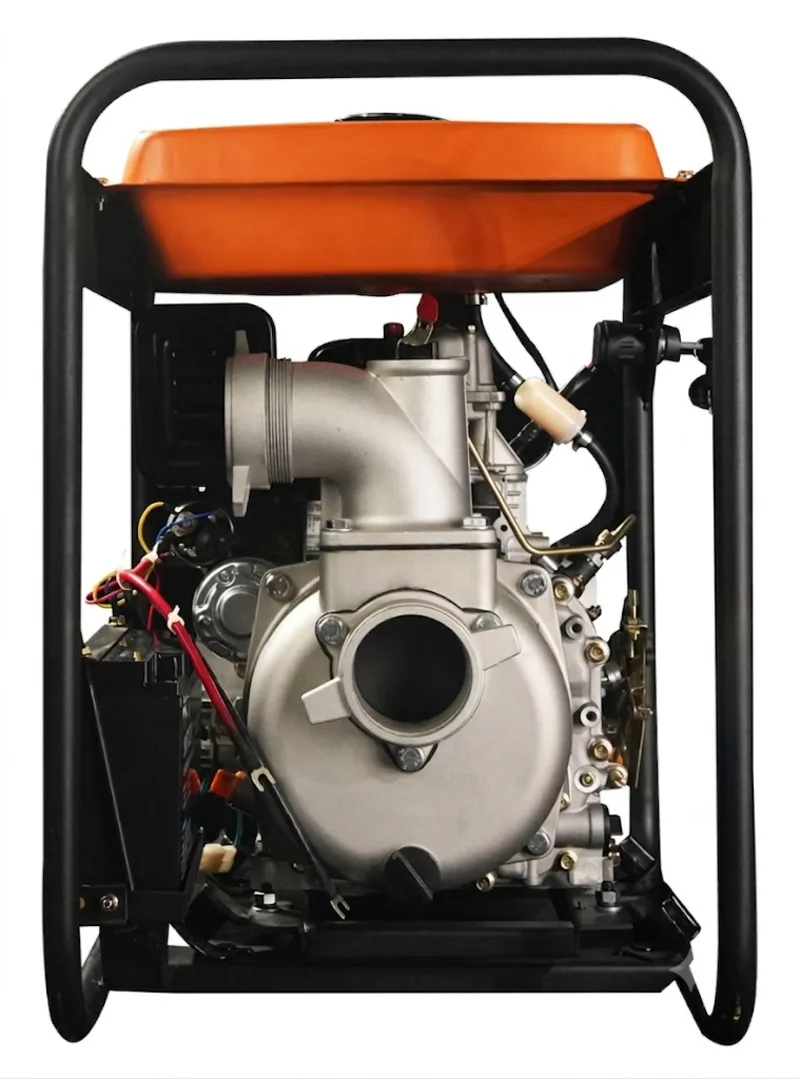

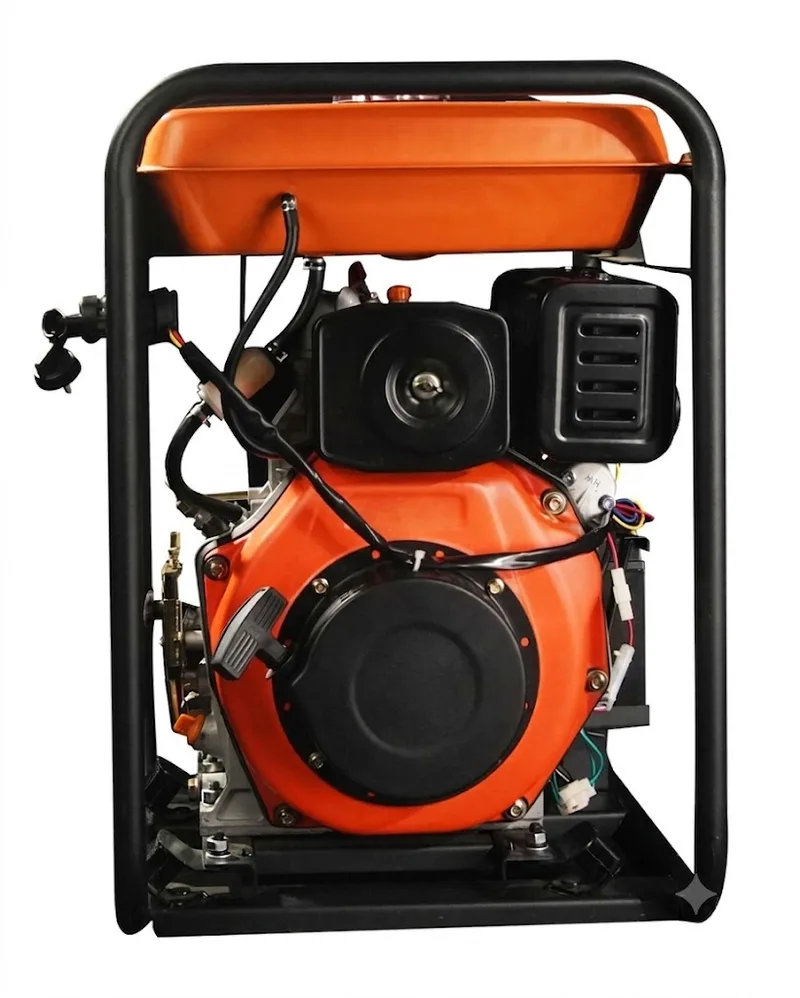

The HTX-WP30 is a 3-inch self-priming diesel water pump for high-volume water transfer. It delivers a rated flow of 40 m³/h at 18 m head (up to 80 m³/h and 30 m maximum), with a 6 m suction lift. Power comes from the air-cooled, four-stroke, single-cylinder HTX-AE178 diesel engine (3.7 kW, 0.296 L, 78×62 mm bore × stroke, 19:1 compression), combining low fuel consumption (280 g/kW.h) with dependable recoil or electric starting. The cast pump body and mechanical seal are built for continuous field duty. A large-capacity fuel tank is available for extended runtime. Ideal for agricultural irrigation, drainage, construction-site dewatering and field water transfer worldwide.
Technical Specifications
- Rated flow
- 40m³/h @ 18m
- Inlet / outlet
- 3" (80mm)
- Net weight
- 55kg
- Max flow
- 80 m³/h
- Max head
- 30 m
- Rated suction head
- 6 m
- Max suction head
- 9 m
- Engine model
- HTX-AE178
- Engine power
- 3.7 kW
- Engine type
- Single-cylinder, air-cooled, 4-stroke, vertical
- Bore x Stroke
- 78 x 62 mm
- Displacement
- 0.296 L
- Compression ratio
- 19:1
- Rated speed
- 3600 rpm
- Fuel consumption
- 280 g/kW.h
- Oil capacity
- 1.1 L
- Start mode
- Recoil or electric start
- Overall dimension
- 565*455*550 mm
Key Features
- High flow — 40 m³/h rated, up to 80 m³/h
- Air-cooled HTX-AE178 diesel engine, 3.7 kW, low fuel use (280 g/kW.h)
- Self-priming with up to 9 m suction lift
- Cast pump body and mechanical seal for continuous field duty
- Recoil or electric start
- Independent of grid power — runs anywhere diesel is available
Applications
- Irrigation
- Drainage
- Construction
- Agriculture
- Flood Control
