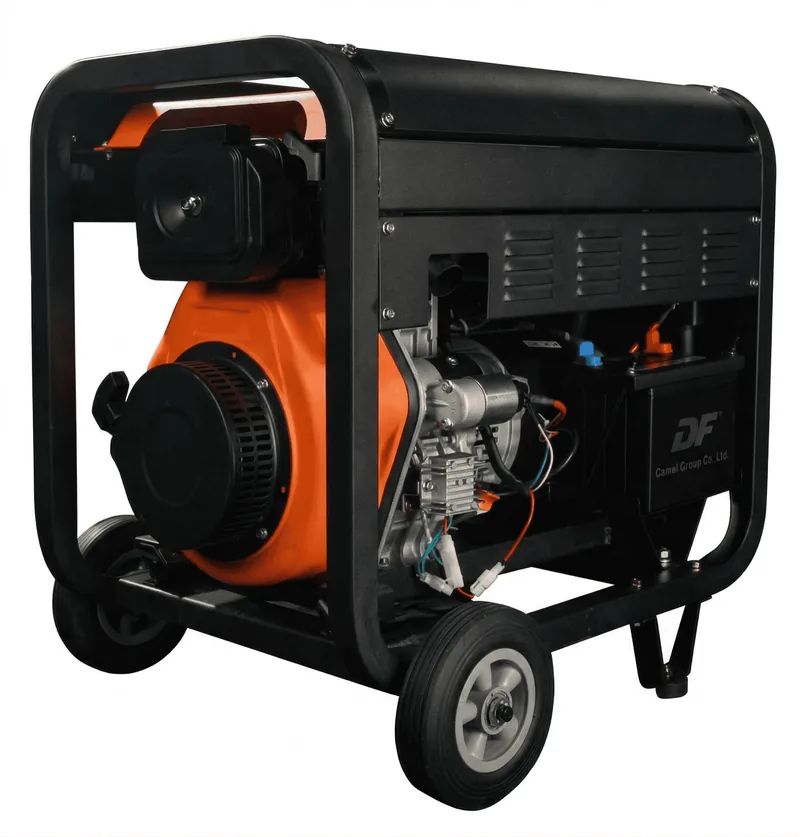

HTX-G10K-XE Open-Frame Diesel Generator
Diesel Generators · Open Frame
6.8 kVA
HTX-G10K-XE is an open-frame diesel generator set: 6.8 kVA (single-phase) / 8.5 kVA (three-phase) prime power at 50 Hz, 7.5 kVA (single-phase) / 9.3 kVA (three-phase) at 60 Hz. HTX-AE195 engine, 78 dB(A) at 7 m, 12.5 L fuel tank.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Built for your grid 50 or 60 Hz, voltage and panel language for your country.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.

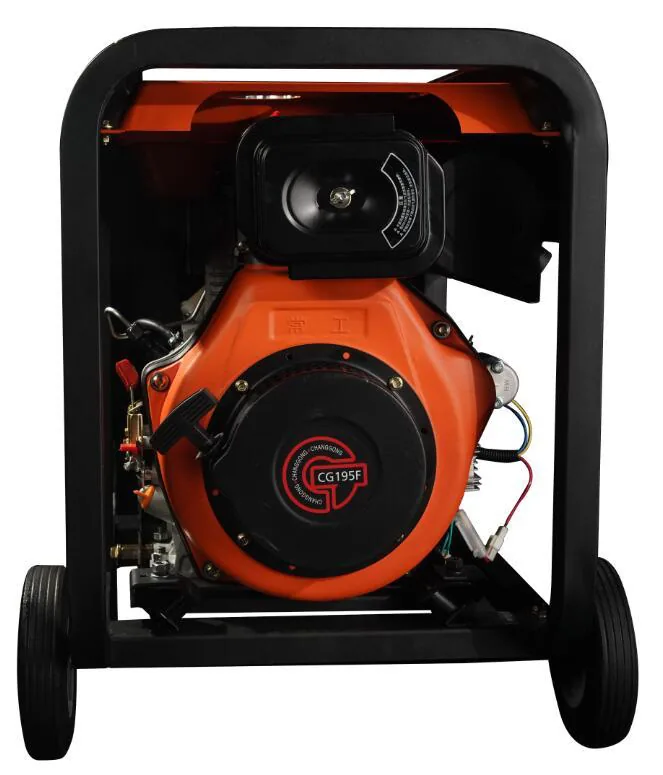

The HTX-G10K-XE is a diesel generator set rated 6.8 kVA prime / 7.5 kVA standby in single-phase configuration (8.5 kVA prime / 9.3 kVA standby in three-phase), designed for reliable and continuous power delivery. Equipped with a copper-wound alternator and AVR voltage stabilizer, it ensures stable output voltage for sensitive equipment. The 230/400V single- or three-phase configuration at 3000/3600rpm (50/60Hz) makes it versatile for a wide range of applications. Powered by the proven HTX-AE195 single-cylinder, air-cooled, direct-injection diesel engine (bore x stroke 95×75mm, displacement 0.532L, engine output 8.0kW), this generator set features low fuel consumption (280 g/kW.h), reliable cold-weather starting via electric start, and a 35mm square-tube open frame for added durability. The 12.5L fuel tank provides extended runtime between refuelling. Ideal for construction sites, emergency backup power, mining, welding support, and field applications worldwide. Available in 50 Hz and 60 Hz versions — both ratings are listed in the specifications below.
Technical Specifications
- Prime power
- 6.8kVA
- Net weight
- 135kg
- Fuel tank capacity
- 12.5L
- Prime power
- 6.8 kVA (single) / 8.5 kVA (three)
- Prime power (60 Hz)
- 7.5 kVA (single) / 9.3 kVA (three)
- Standby power
- 7.5 kVA (single) / 9.3 kVA (three)
- Standby power (60 Hz)
- 8.3 kVA (single) / 10.3 kVA (three)
- Rated voltage
- 115/230 (single) / 400/230 (three) V
- Rated voltage (60 Hz)
- 120/240 (single) / 416/240 (three) V
- Phase / Frequency
- Single-phase / Three-phase, 50/60Hz, 3000/3600rpm
- Power factor
- 1.0 (single) / 0.8 (three)
- Engine model
- HTX-AE195
- Engine bore x stroke
- 95 x 75 mm
- Engine displacement
- 0.532 L
- Oil capacity
- 1.65 L
- Compression ratio
- 19:1
- Engine rated power
- 8.0 kW
- Fuel consumption
- 280 g/kW.h
- Start mode
- Electric start
- Battery capacity
- 12V-28Ah
- Frame type
- 35mm square tube
- Overall dimension
- 745*515*730 mm
- Alternator type
- Copper-wound with AVR voltage stabilizer
- Noise level @ 7 m
- 78 dB(A)
Key Features
- 6.8 kVA prime / 7.5 kVA standby single-phase (8.1 / 9.3 kVA three-phase)
- Copper-wound alternator with AVR for stable output voltage
- Powered by the HTX-AE195 air-cooled direct-injection diesel engine
- 35mm square-tube open frame for durability and easy transport
- 12.5L fuel tank for extended runtime between refuelling
- Electric start; ATS, remote control and one-click start available
