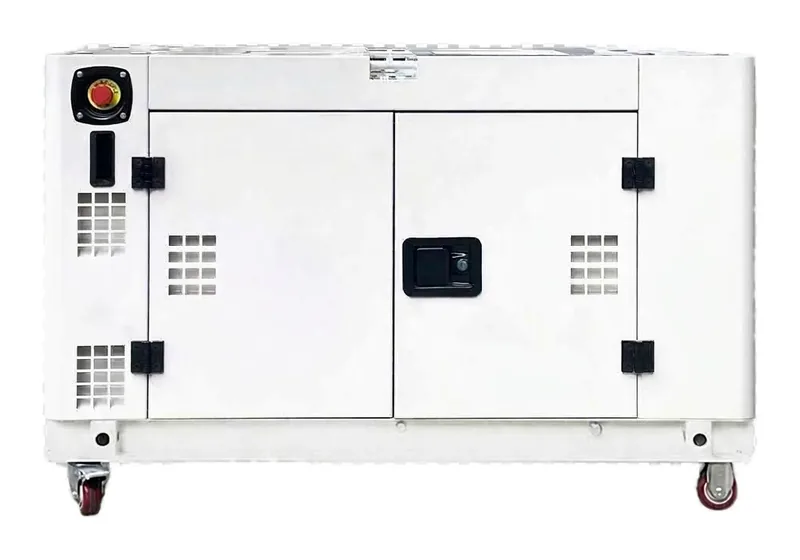

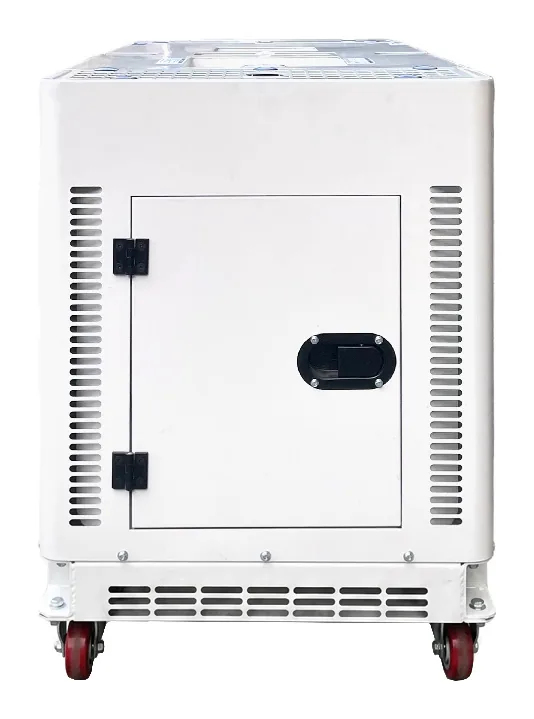

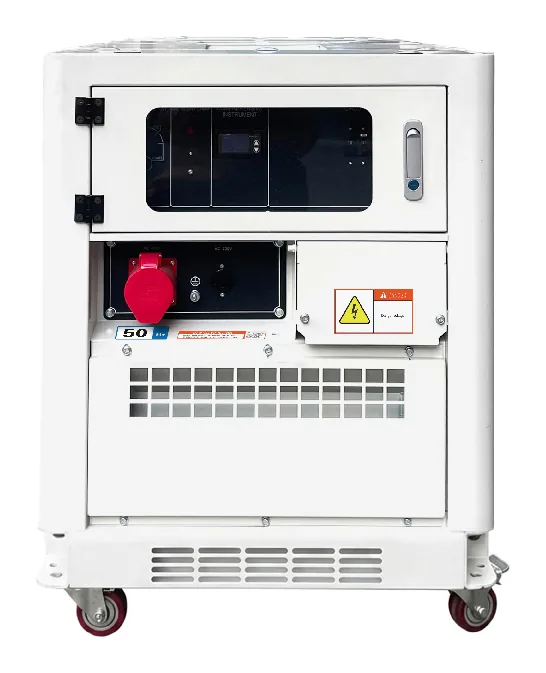

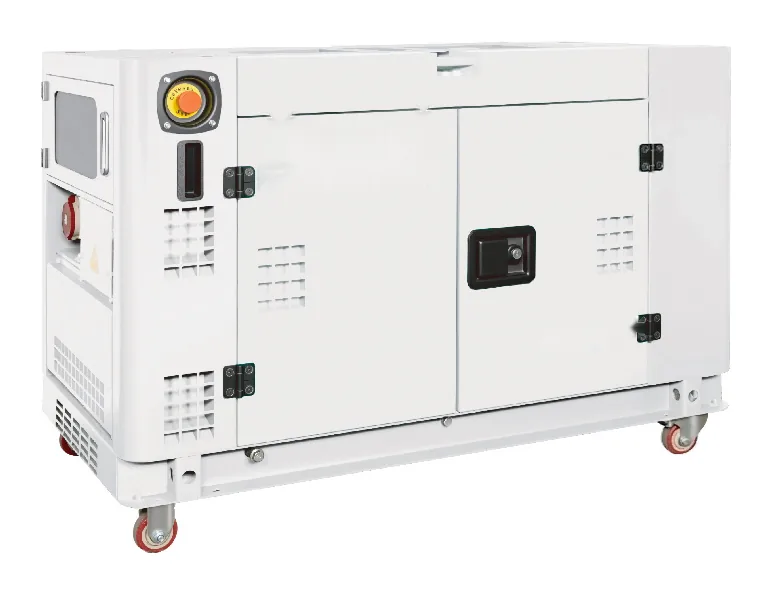

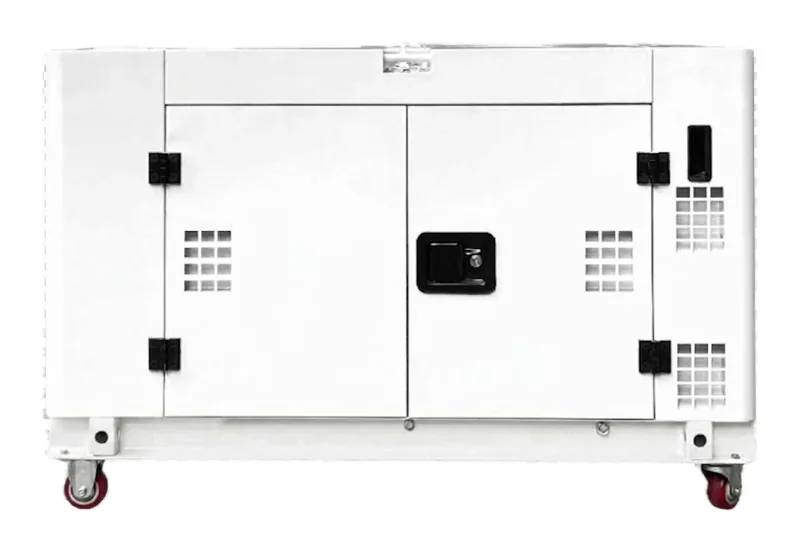

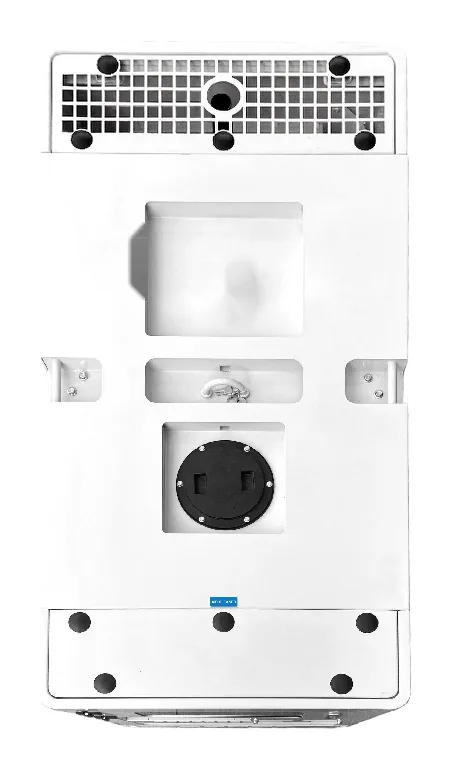

9kVA Silent Diesel Generator Set
Diesel Generators · Silent
9 kVA
HTX-G14K-S is a silent (canopied) diesel generator set: 9 kVA (single-phase) / 11.2 kVA (three-phase) prime power at 50 Hz. HTX-AE1105 engine, 74 dB(A) at 7 m, 15 L fuel tank.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Built for your grid 50 or 60 Hz, voltage and panel language for your country.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX-G14K-S is a 9kVA prime / 9.9kVA standby silent diesel generator set in single-phase output, and 11.2kVA prime / 12.3kVA standby in three-phase. Both outputs deliver the same kW, so one set covers 115/230V single-phase and 400/230V three-phase loads. A copper-wound alternator with AVR keeps the output voltage stable. The sound-attenuated canopy brings the noise down to 74 dB(A) at 7 m. Power comes from the HTX-AE1105 single-cylinder air-cooled direct-injection diesel engine (105×88mm bore×stroke, 0.762L, 11.7kW) with 12V electric start. Fuel tank: 15L. Built for hotels, hospitals, offices, telecom sites and other places where noise matters, worldwide. 50 Hz model at 3000 rpm. Ask us about a 60 Hz version.
Technical Specifications
- Prime power
- 9kVA
- Net weight
- 256kg
- Fuel tank capacity
- 15L
- Prime power
- 9 kVA (single) / 11.2 kVA (three)
- Standby power
- 9.9 kVA (single) / 12.3 kVA (three)
- Rated voltage
- 115/230 (single) / 400/230 (three) V
- Phase / Frequency
- Single-phase / Three-phase, 50Hz, 3000rpm
- Power factor
- 1.0 (single) / 0.8 (three)
- Engine model
- HTX-AE1105
- Engine bore x stroke
- 105 x 88 mm
- Engine displacement
- 0.762 L
- Compression ratio
- 19:1
- Engine rated power
- 11.7 kW
- Fuel consumption
- 280 g/kW.h
- Oil capacity
- 2.1 L
- Start mode
- Electric start
- Battery capacity
- 12V-36Ah
- Frame type
- Sound-attenuated canopy
- Overall dimension
- 1180*640*865 mm
- Alternator type
- Copper-wound with AVR voltage stabilizer
- Noise level @ 7 m
- 74 dB(A)
Key Features
- Single-phase 9kVA or three-phase 11.2kVA from the same set
- Copper-wound alternator with AVR voltage stabilizer
- HTX-AE1105 single-cylinder air-cooled engine, 11.7kW
- Sound-attenuated canopy, 74 dB(A) at 7 m
- 12V electric start
Applications
