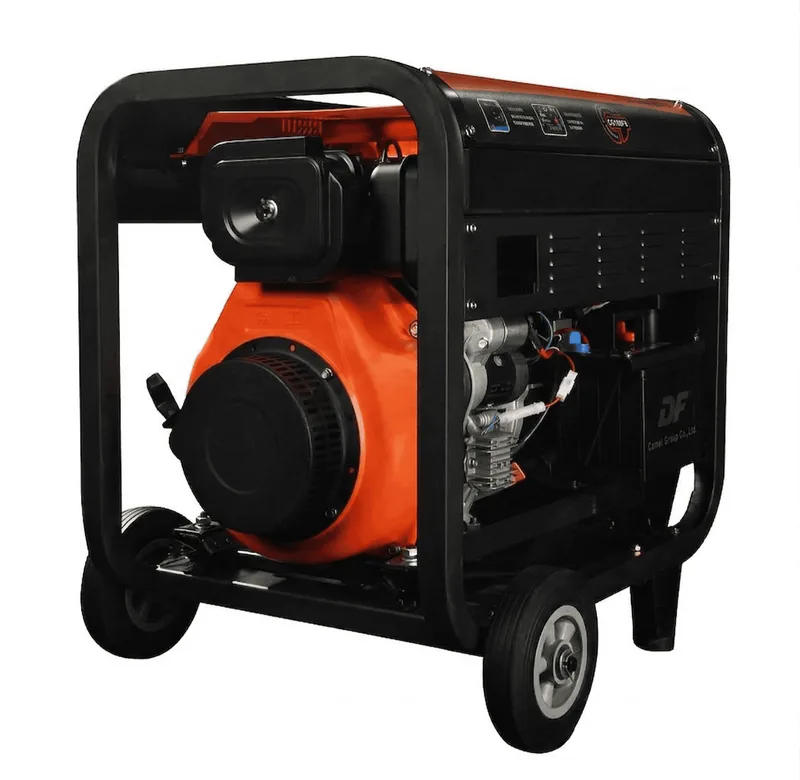

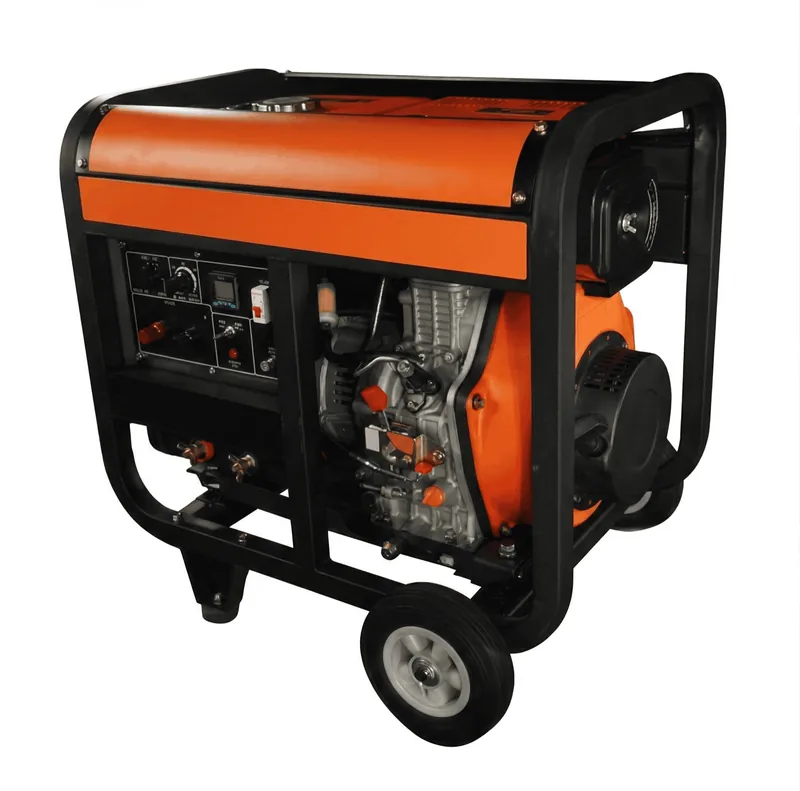

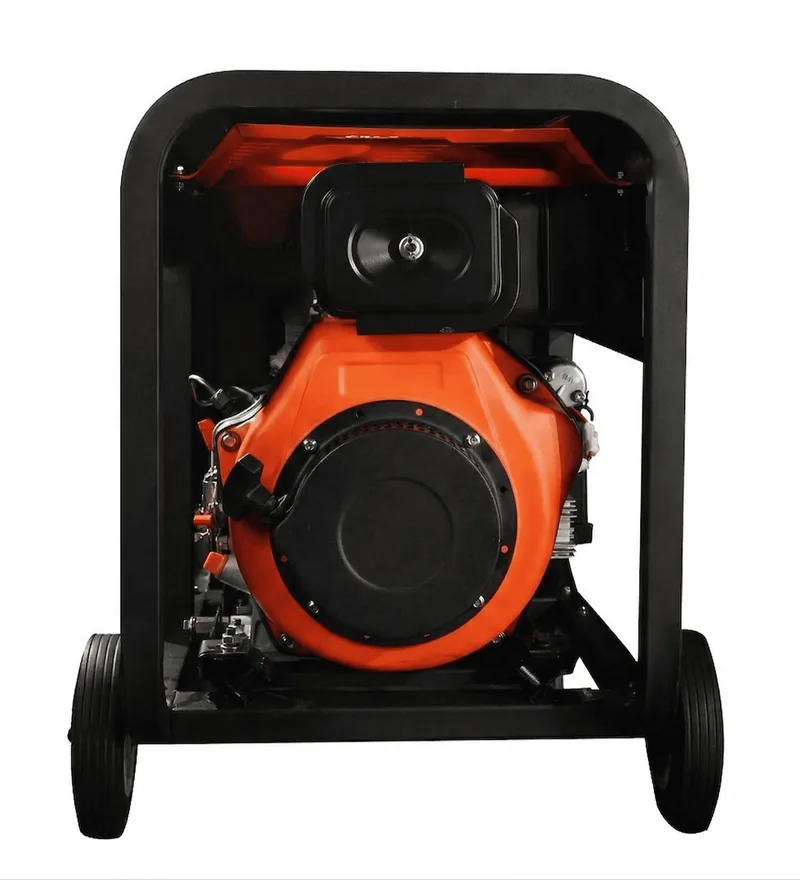

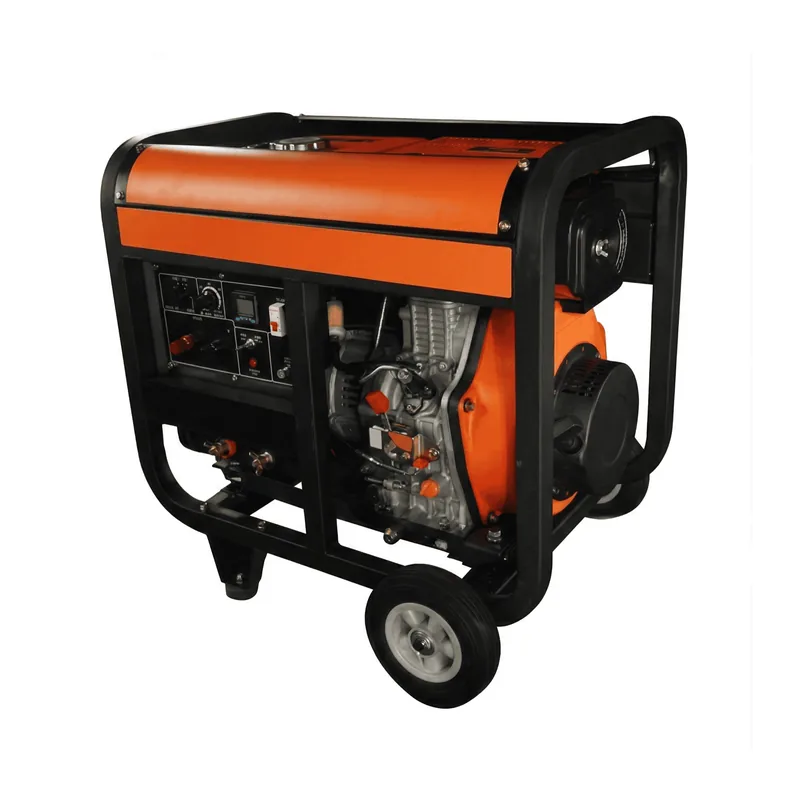

200A Diesel Welding Generator Set
Diesel Generators · Welding
5 kVA
HTX-GW200E is a diesel welding generator: 50-200 A welding current, 1.6-3.0 mm electrodes, plus 5.0 kVA single-phase auxiliary power at 50 Hz. HTX-AE188 engine, 12.5 L fuel tank, 85 dB(A) at 7 m.
Buying from HTX
- Samples on request Assess the unit before a volume order.
- Volume pricing Quoted by model and quantity.
- Built for your grid 50 or 60 Hz, voltage and panel language for your country.
- Inspection welcome Pre-shipment and third-party (SGS, BV) inspection.
- Export documents Certificates that apply to the model and destination.
- Lead time in writing Confirmed with each quotation.
The HTX GW200E is a dual-purpose diesel welding generator that combines a 5.0kVA power generator with a 50-200A DC arc welder in one compact, mobile unit. Powered by the reliable single-cylinder, air-cooled, direct-injection diesel engine (88×75mm bore×stroke, 0.456L displacement, 6.3kW engine output), it delivers welding current and 230V AC power in single-phase configuration at 3000/3600rpm (50/60Hz). The welding function supports electrode diameters from 1.6mm to 3.0mm with adjustable current from 50A to 200A, making it suitable for field fabrication, pipeline work, and structural steel repair. Working welding voltage is 20.8-28V (per IEC formula), and open-circuit voltage is in the 65-70V range. The 12.5L fuel tank provides extended runtime, and electric start ensures one-button convenience. Ideal for construction, field welding, pipeline repair, mining, and agriculture worldwide where both power and welding are needed in remote locations. Available in 50 Hz and 60 Hz versions — both ratings are listed in the specifications below.
Technical Specifications
- Generator output
- 5kVA
- Rated voltage
- 115/230V
- Net weight
- 122kg
- Generator output
- 5.0 kVA
- Generator output (60 Hz)
- 5.5 kVA
- Welding current range
- 50-200 A
- Welding electrode diameter
- 1.6-3.0 mm
- Open-circuit voltage
- 65-70 V
- Working welding voltage
- 20.8-28 V
- Rated voltage (60 Hz)
- 120/240 V
- Phase / Frequency
- Single-phase, 50/60Hz, 3000/3600rpm
- Engine model
- HTX-AE188
- Engine bore x stroke
- 88 x 75 mm
- Engine displacement
- 0.456 L
- Oil capacity
- 1.65 L
- Compression ratio
- 19:1
- Engine rated power
- 6.3 kW
- Fuel tank capacity
- 12.5 L
- Fuel consumption
- 280 g/kW.h
- Fuel consumption (100% load)
- 2.39 L/h
- Fuel consumption (75% load)
- 1.82 L/h
- Start mode
- Electric start
- Frame type
- 35mm square tube
- Overall dimension
- 745*515*730 mm
- Alternator type
- Copper-wound with AVR voltage stabilizer
- Noise level @ 7 m
- 85 dB(A)
Key Features
- Dual-purpose: 5.0kVA generator + 50-200A DC arc welder in one unit
- Copper-wound alternator with AVR voltage stabilizer
- Welding current adjustable from 50A to 200A
- Supports electrode diameters 1.6-3.0mm
- single-cylinder air-cooled engine
- No-load and overload protection
- Electric start for convenience
- Compact and portable design
Applications
